PWDM滤光片

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

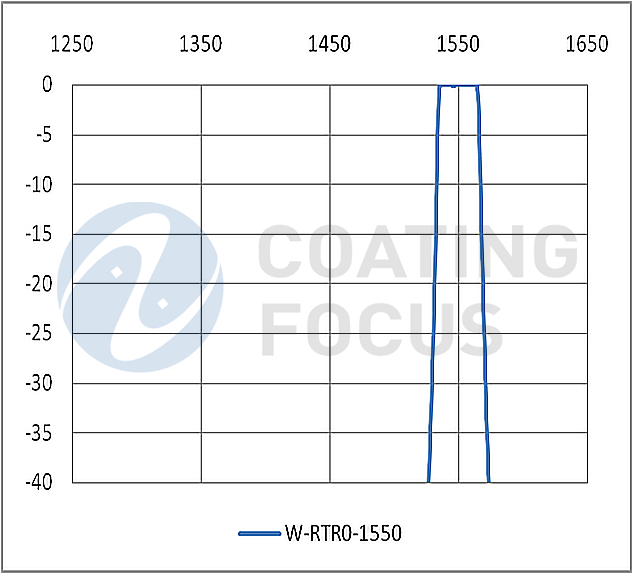

Pass Band

nm

1540~1560

Stop Band

nm

1260~1510 & 1575~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=18

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

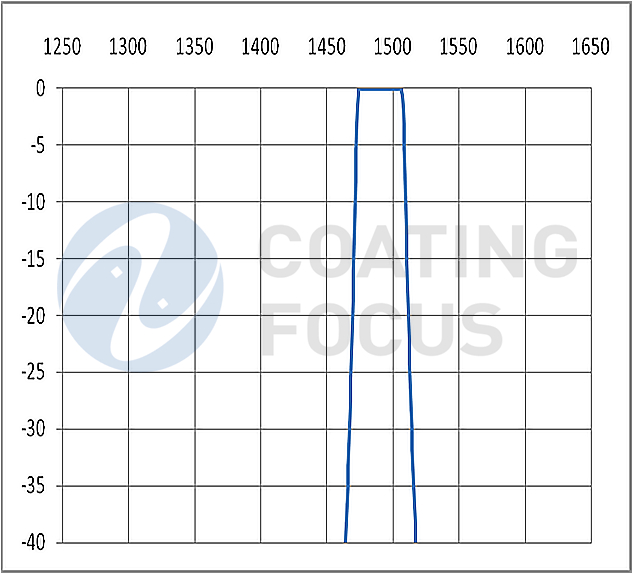

Pass Band

nm

1480~1500

Stop Band

nm

1260~1450 & 1530~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=15

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

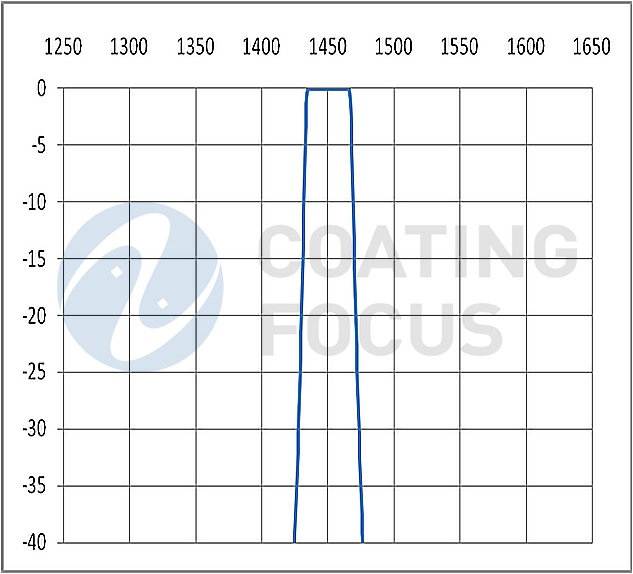

Pass Band

nm

1440~1460

Stop Band

nm

1260~1400 & 1480~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=15

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

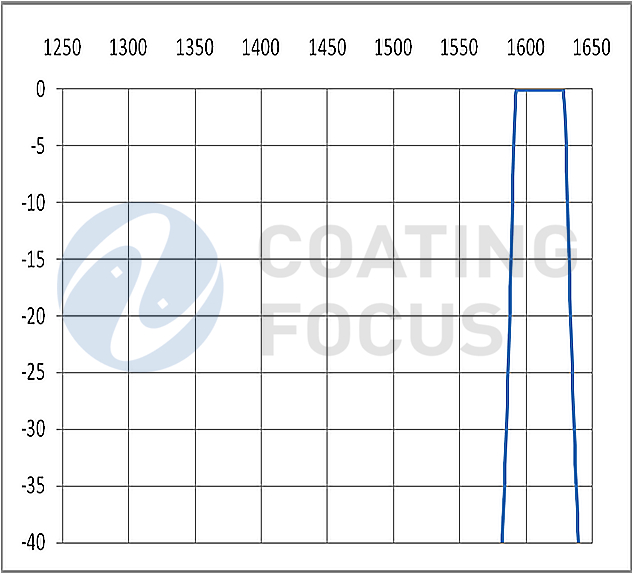

Pass Band

nm

1600~1620

Stop Band

nm

1260~1580 & 1640~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=15

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

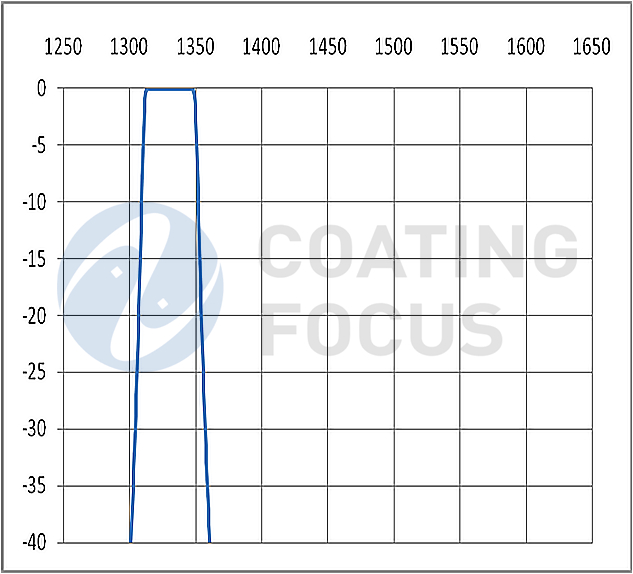

Pass Band

nm

1310~1340

Stop Band

nm

1260~1290 & 1360~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=15
