50G COMBO PON Filter

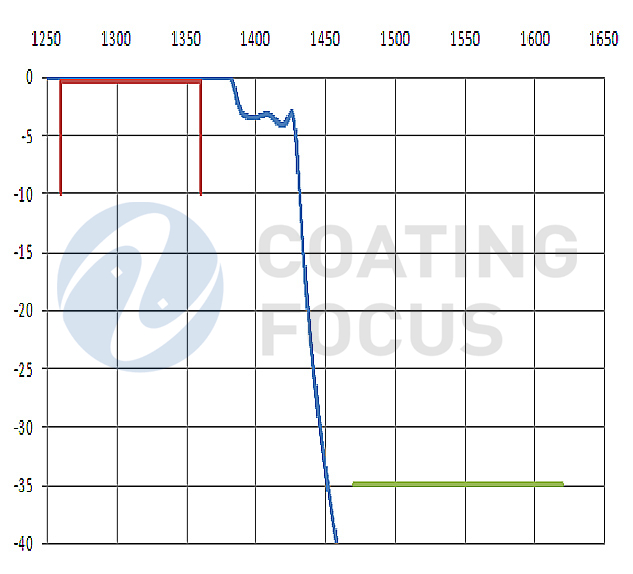

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

45

Pass Band Width

nm

1260~1360

Stop Band Width

nm

1470~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>35

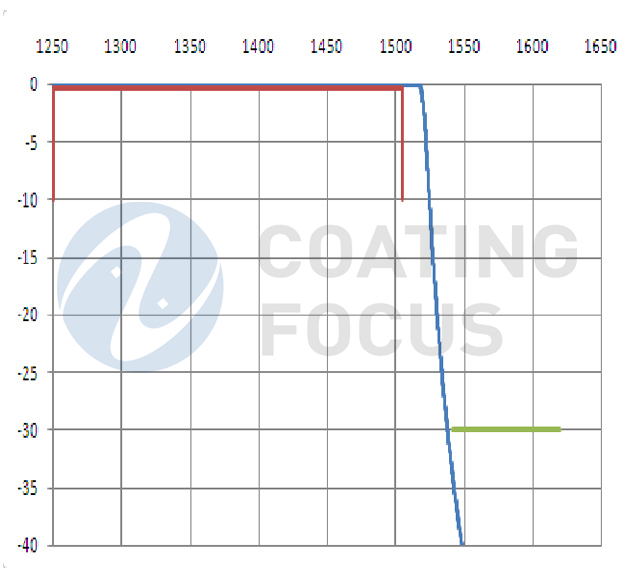

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

45

Pass Band Width

nm

1250~1510

Stop Band Width

nm

1540~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>35

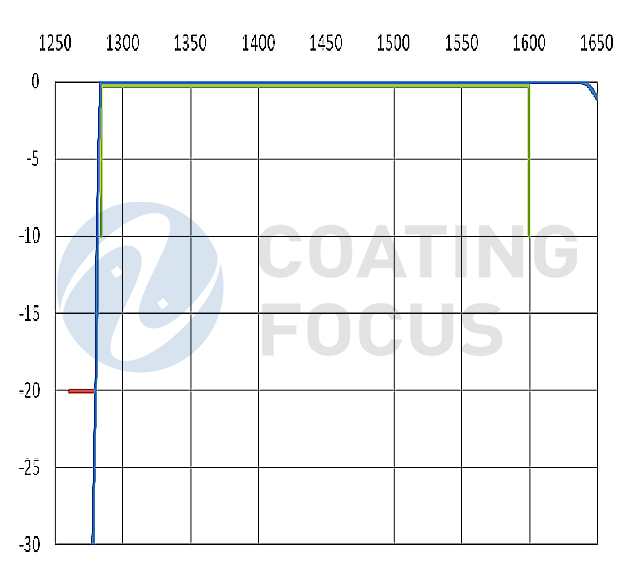

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1600

Angle of Incident

°

8

Pass Band Width

nm

1284~1600

Stop Band Width

nm

1260~1280

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>20

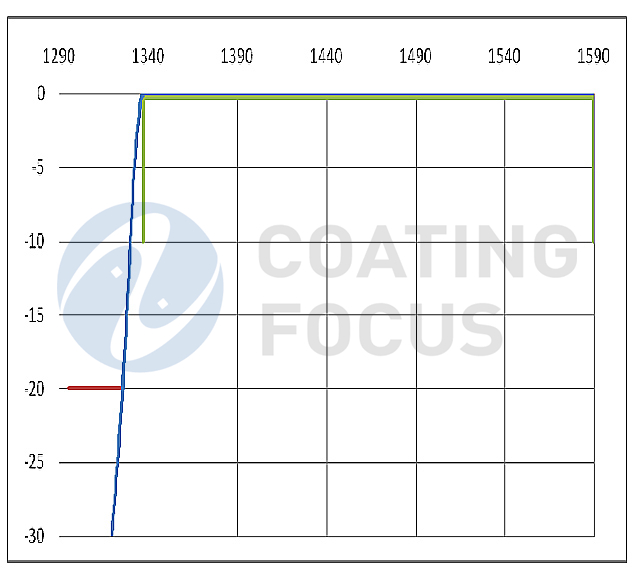

Parameters

Unit

Specifications

Operation Wavelength

nm

1290~1620

Angle of Incident

°

13

Pass Band Width

nm

1340~1590

Stop Band Width

nm

1290~1330

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>20

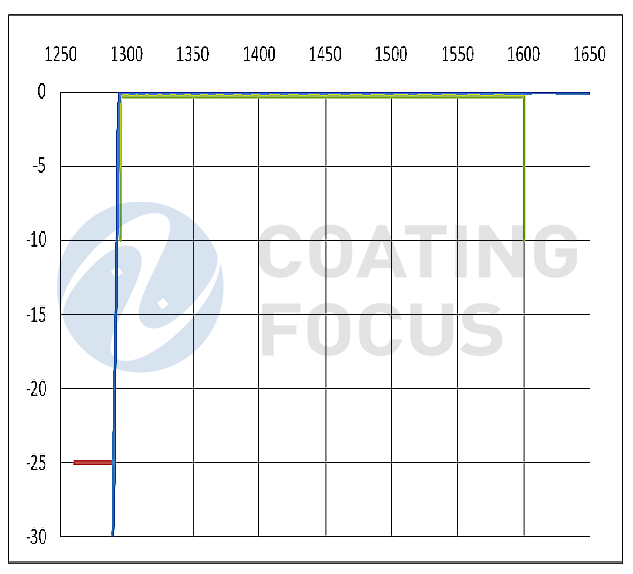

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

8

Pass Band Width

nm

1295~1600

Stop Band Width

nm

1260~1280

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

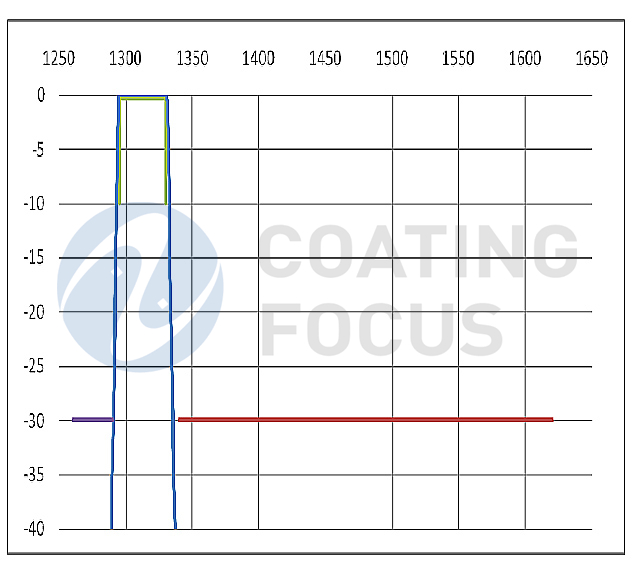

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

0

Pass Band Width

nm

1295~1330

Stop Band Width

nm

1260~1288 & 1340~1600

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

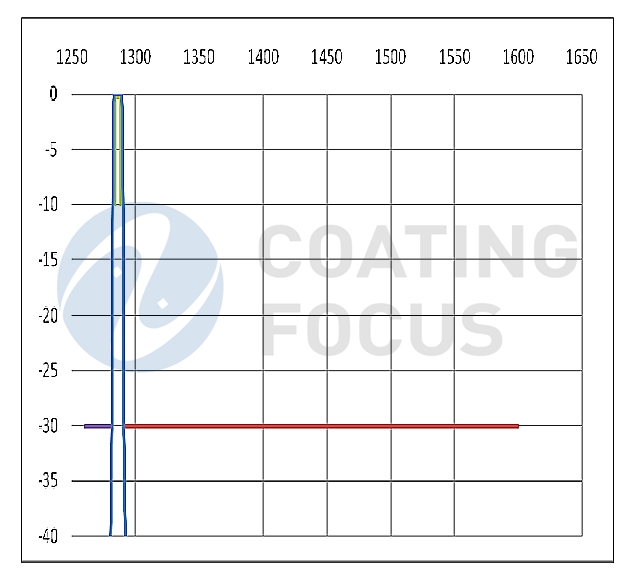

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

0

Pass Band Width

nm

1284~1288

Stop Band Width

nm

1260~1280 & 1292~1600

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

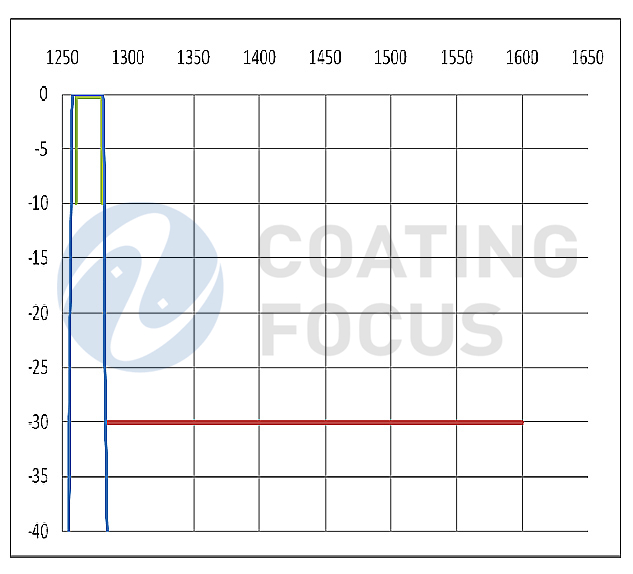

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

0

Pass Band Width

nm

1260~1280

Stop Band Width

nm

1284~1600

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30
