FWDM Filter

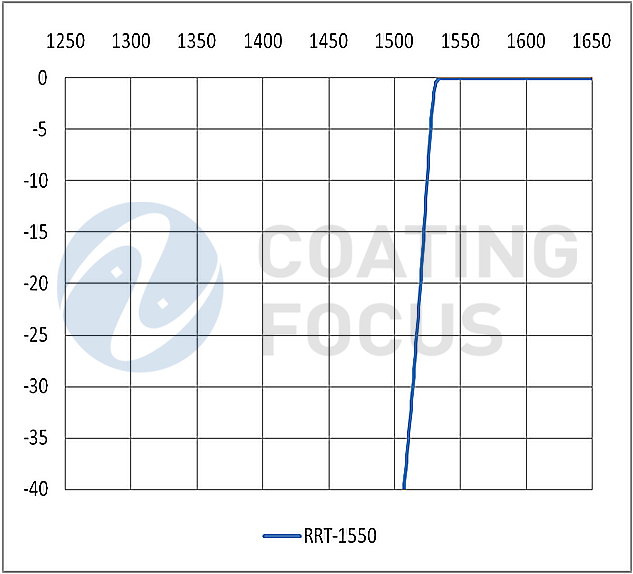

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

Pass Band

nm

1540~1650

Stop Band

nm

1260~1500

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=18

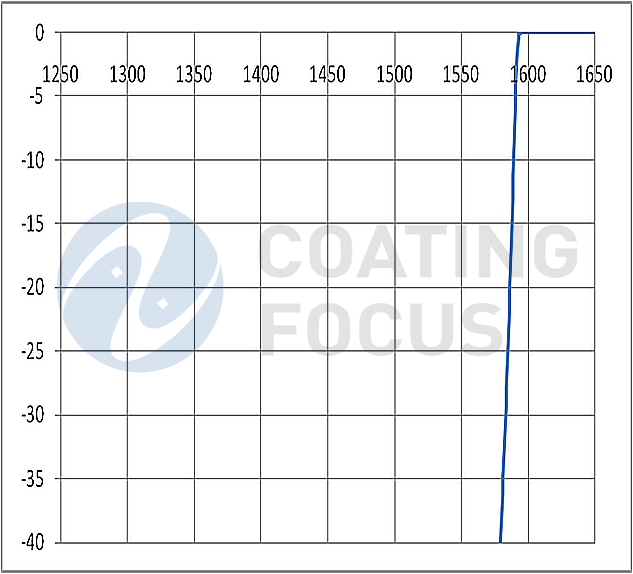

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

Pass Band

nm

1610~1650

Stop Band

nm

1260~1580

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=18

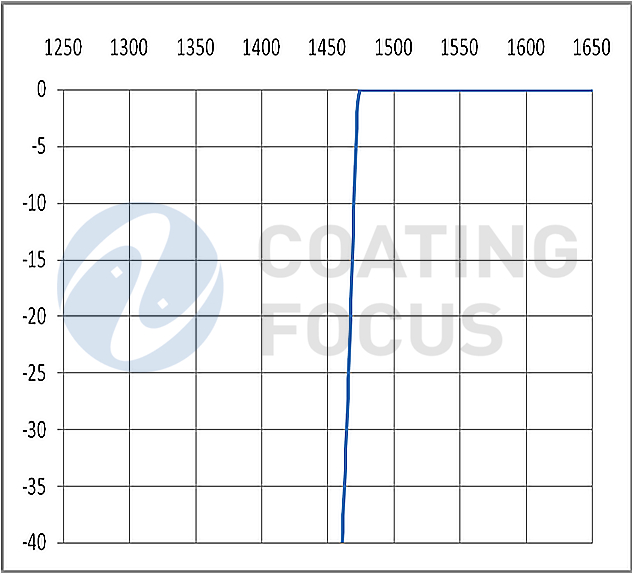

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

Pass Band

nm

1480~1650

Stop Band

nm

1260~1450

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=18

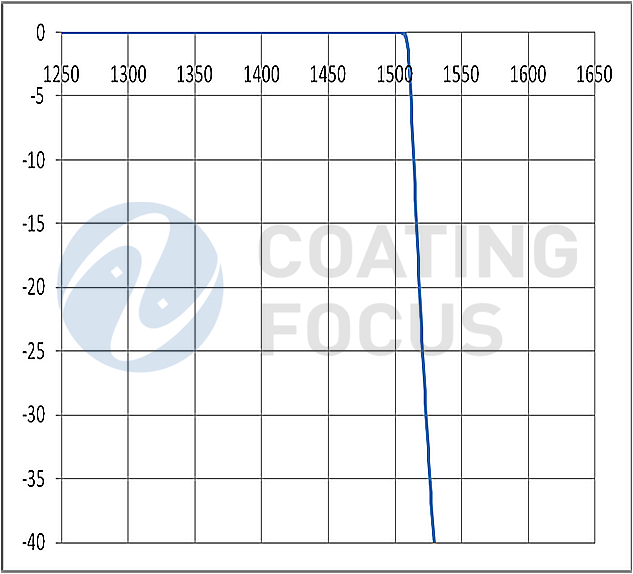

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

Pass Band

nm

1260~1500

Stop Band

nm

1540~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=18

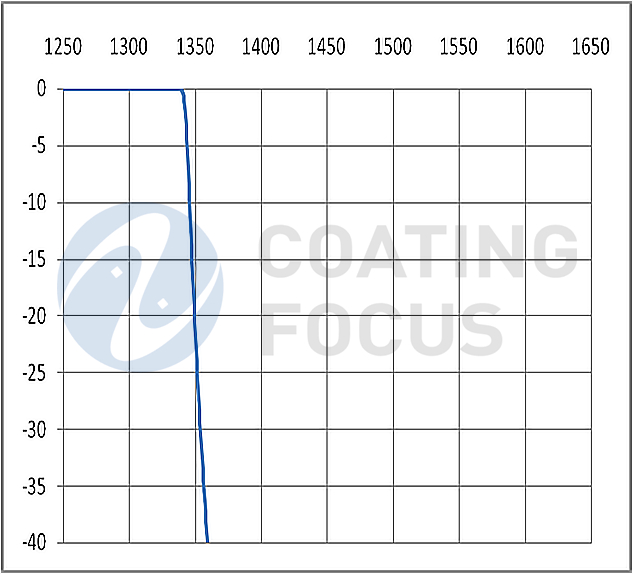

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1650

Angle of Incident

°

1.8

Pass Band

nm

1260~1330

Stop Band

nm

1370~1650

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation

dB

>=30

Reflection Isolation

dB

>=18
