Parameters |
Unit |
Specifications |
Operation Wavelength |
nm |
1260~1360 |
Incidence medium |
/ |
Epoxy(n=1.491@1300) |
Angle of Incident |
° |
8 or 13.5 |

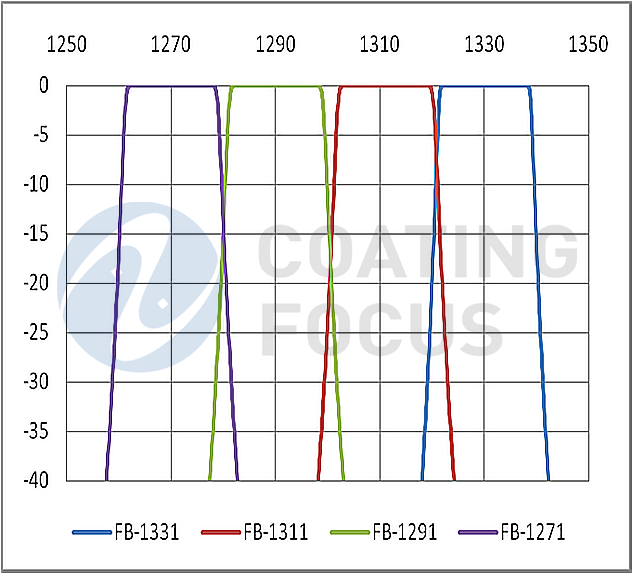

Center Wavelength Tolerance @ -3.0dB |
nm |
1271,1291,1311,1331 +/-0.5 |
Pass Band Width @ -0.3dB |
nm |
>=15 |
Stop Band Width |
nm |
<=25 |
Max IL within PassBand |
dB |
<=0.3 |
Max IL within StopBand |
dB |
<=0.2 |
Ripple within PassBand |
dB |
<=0.2 |
Ripple within StopBand |
dB |
<=0.15 |
Polarization Dependent Loss within PassBand |
dB |
<=0.1 |
Transmission Isolation within Adjacent Channel |
dB |
>=30 |
Transmission Isolation within Not-Adjacent Channel |
dB |
>=45 |
