Bandpass Filter

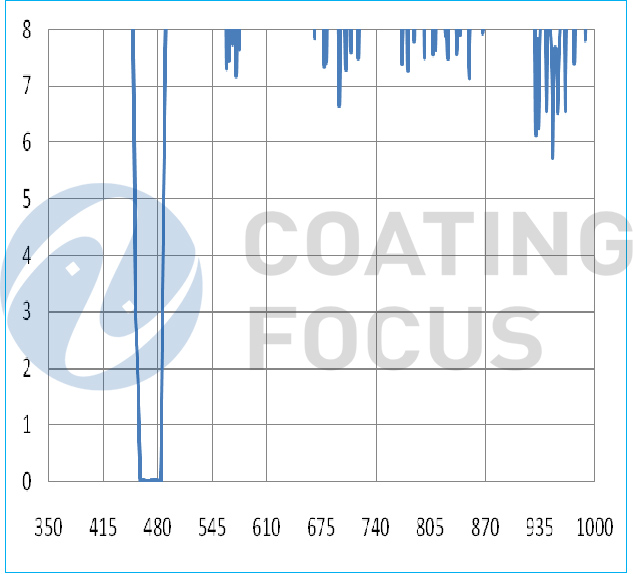

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

457~483

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~449 &  491~1000

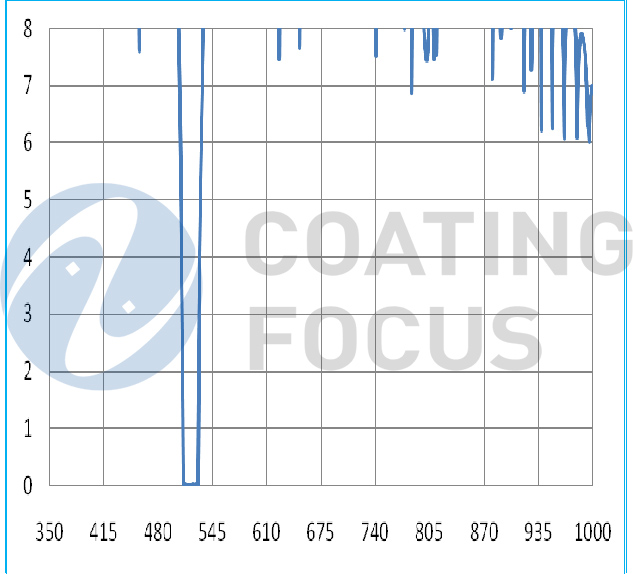

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

512~528

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~504 &  536~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

517~533

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~509 &  541~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

520~538

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~513 &  545~1000

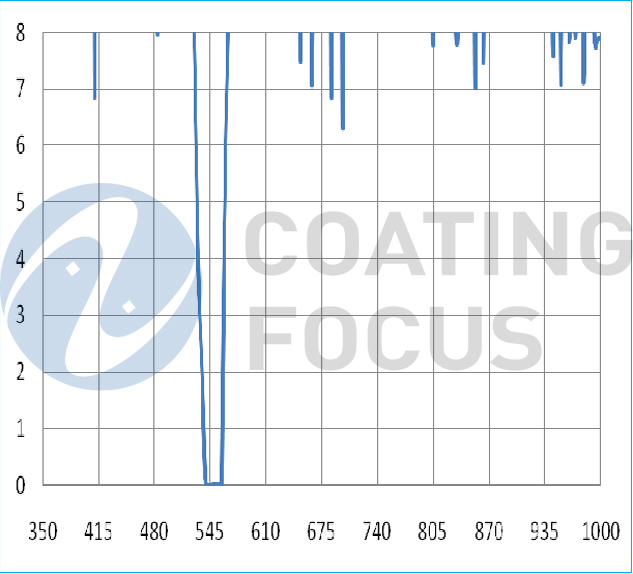

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

534.5~555.5

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~526.5 &  563.5~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

541~561

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~535 &  567~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

557~573

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~549 &  581~1000

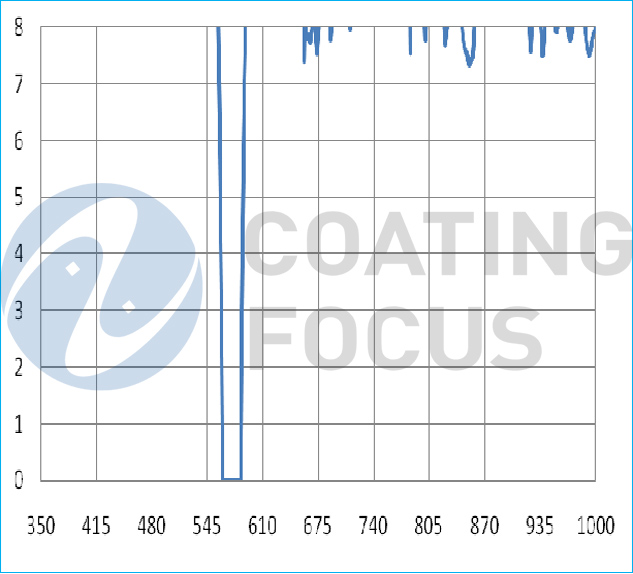

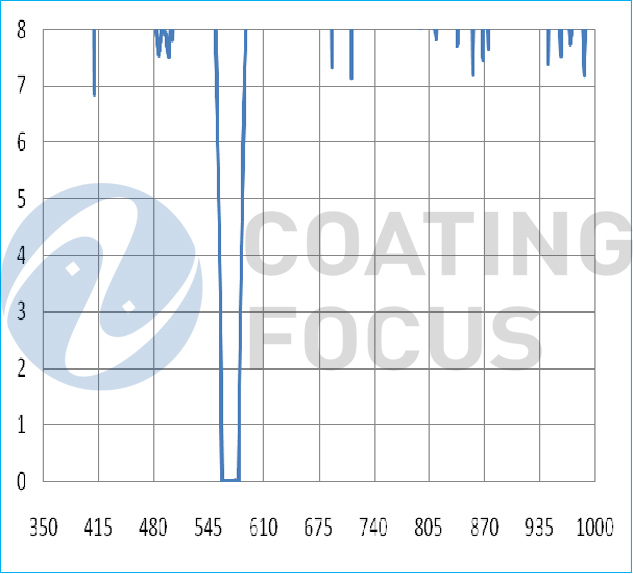

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

562~578

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~554 &  586~1000

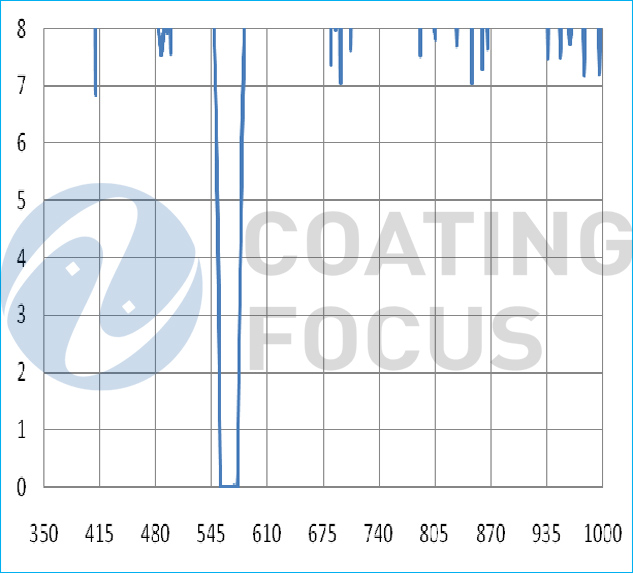

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

563~583

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~557 &  589~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

577~593

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~569 &  601~1000

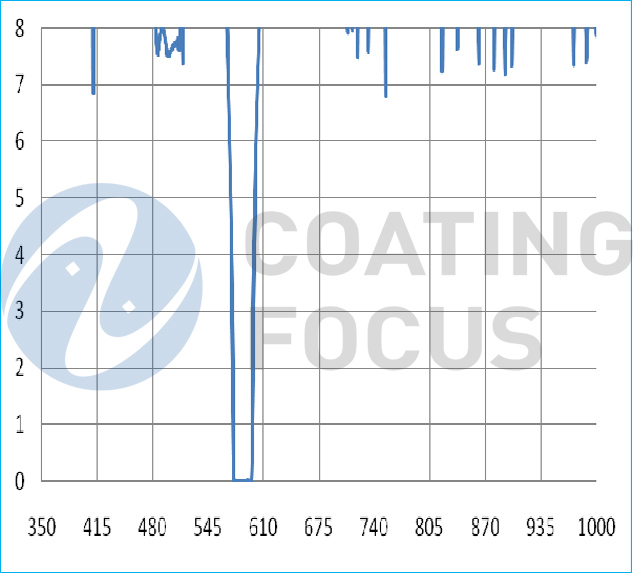

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

585~605

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~579 &  611~1000

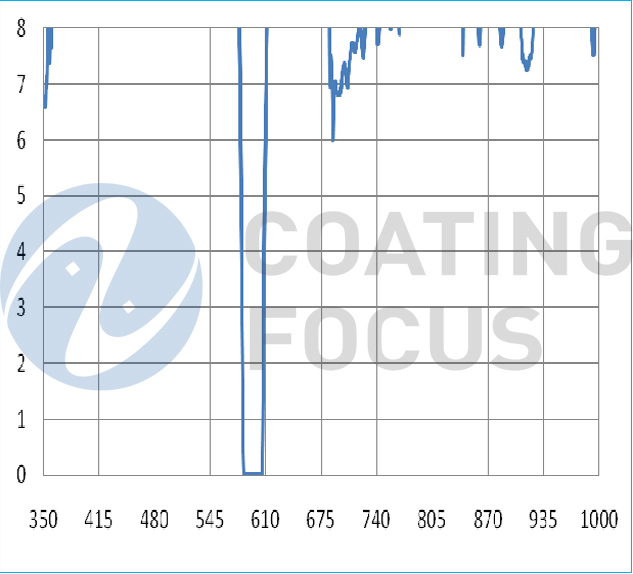

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

597~633

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~589 &  641~1000

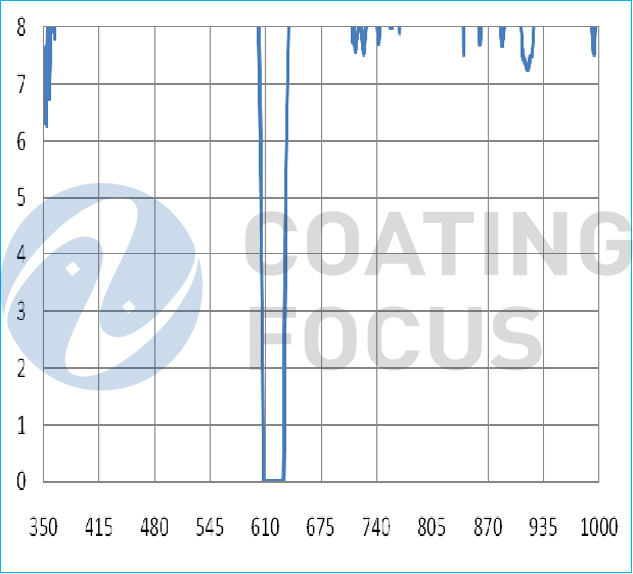

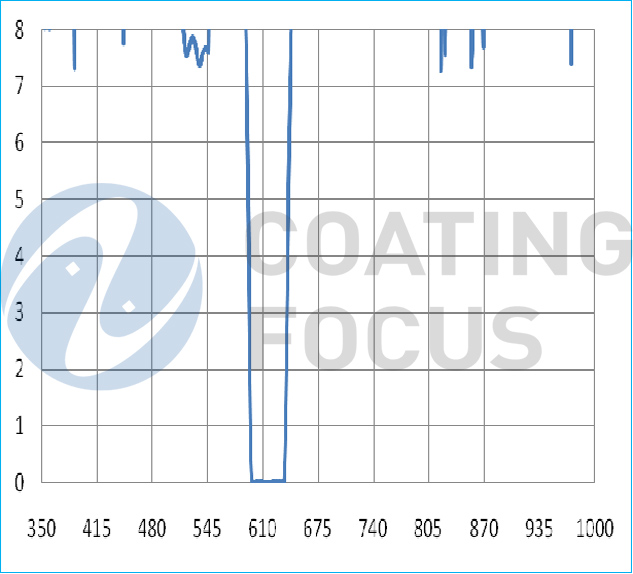

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

607~630

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~601 &  636~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

622~638

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~614 &  646~1000

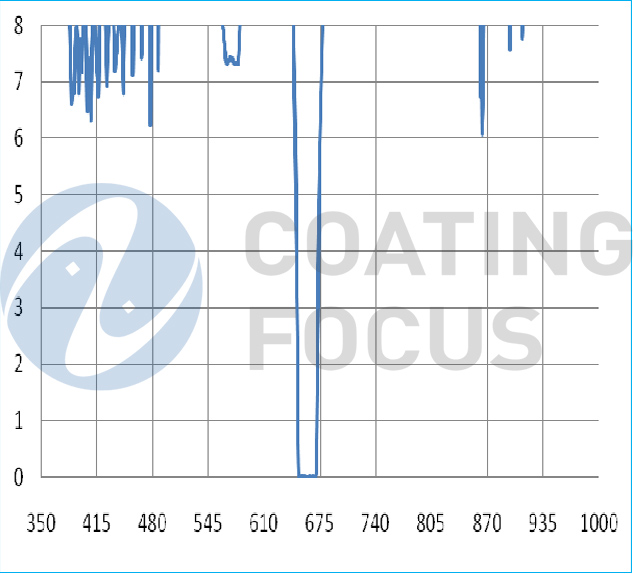

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

657~673

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~649 &  681~1000

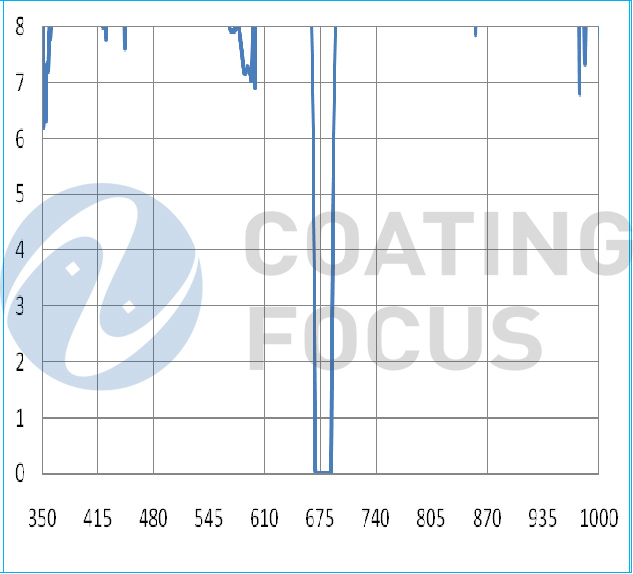

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

670~686

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~664 &  692~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

688.5~705.5

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~682.5 &  711.5~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

708~726

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~702 &  732~1000

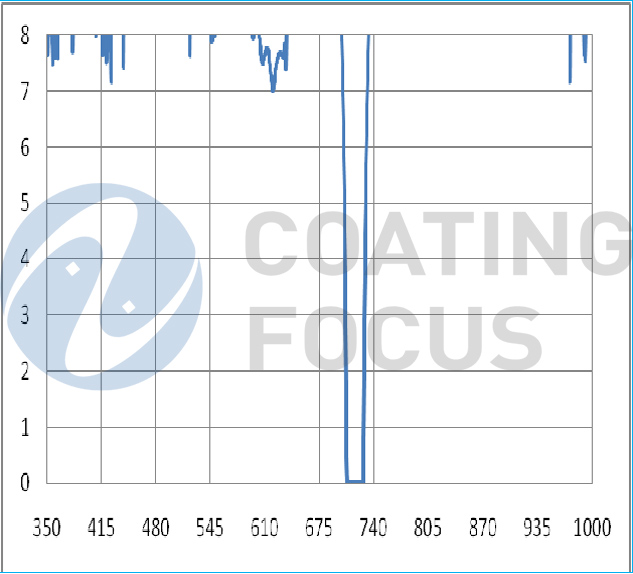

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

707~734

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~701 &  740~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

729~747

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~723 &  753~1000

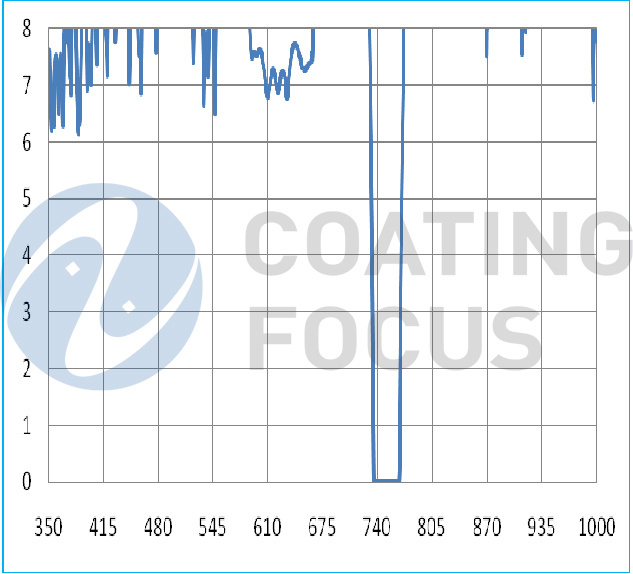

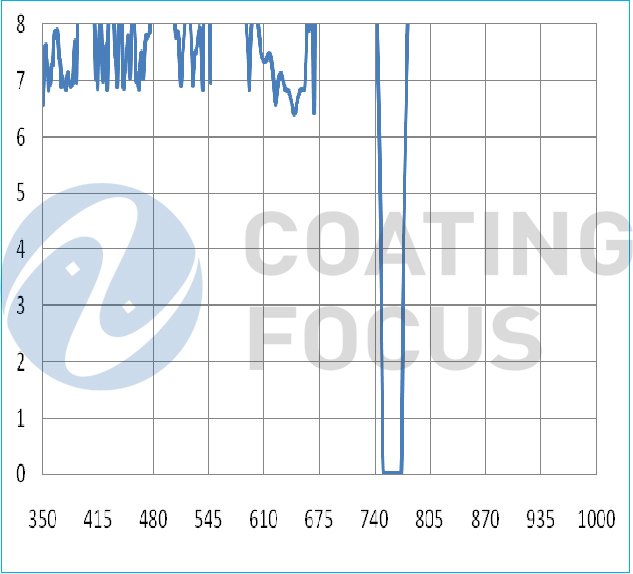

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

736~764

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~730 &  770~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

749.5~770.5

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~743.5 &  776.5~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

766~794

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~760 &  800~1000

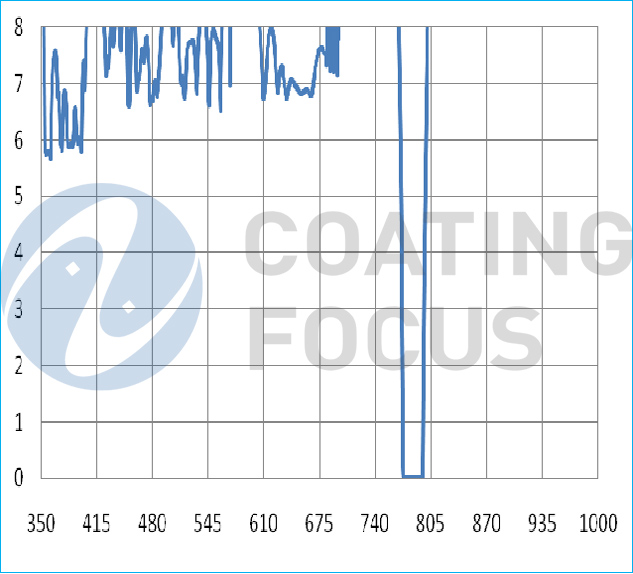

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

773~794

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band1 OD > 5

nm

350~400

Block Band2 OD > 6

nm

400~768 &  802~1000

Parameters

Unit

Specifications

Angle of Incident

°

0

Passband

nm

796~828

Passband Average Transmission

%

>= 90%

Passband Absolute Transmission

%

>= 92%

Block Band2 OD > 6

nm

350~790 &  834~1000
