Triplexer Filter

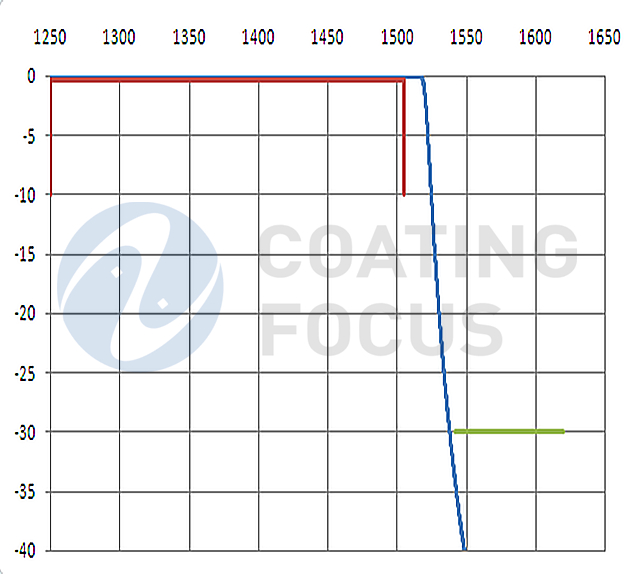

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1620

Angle of Incident

°

45

Pass Band Width

nm

1260~1500

Stop Band Width

nm

1540~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

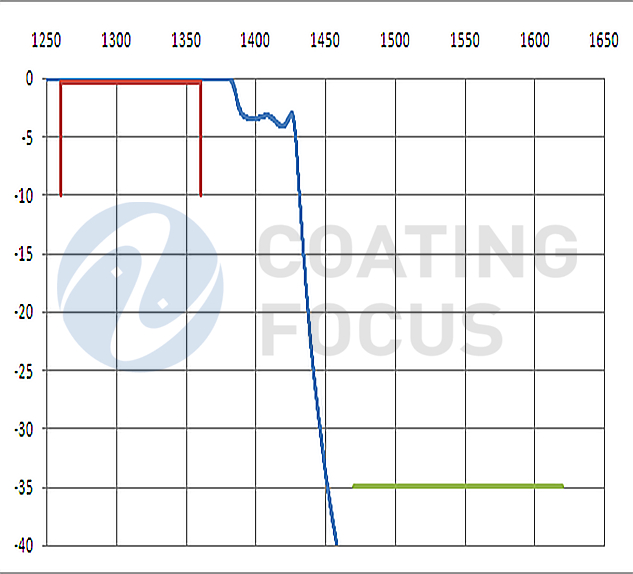

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1600

Angle of Incident

°

45

Pass Band Width

nm

1260~1360

Stop Band Width

nm

1470~1600

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

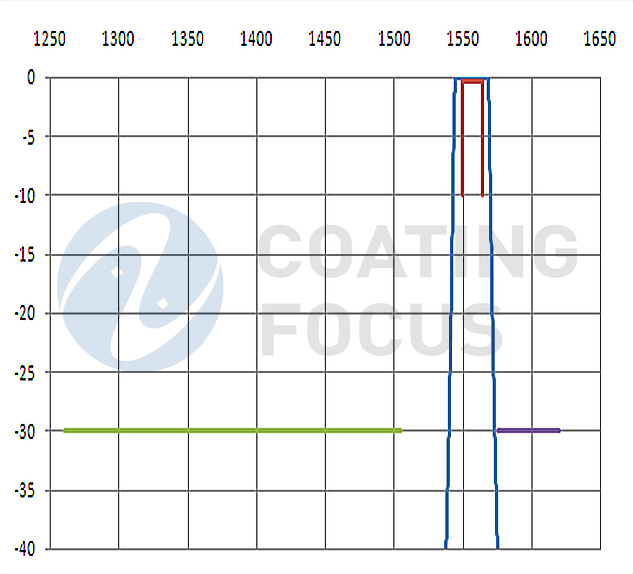

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1600

Angle of Incident

°

0

Pass Band Width

nm

1549~1564

Stop Band Width

nm

1260~1530&
1574~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

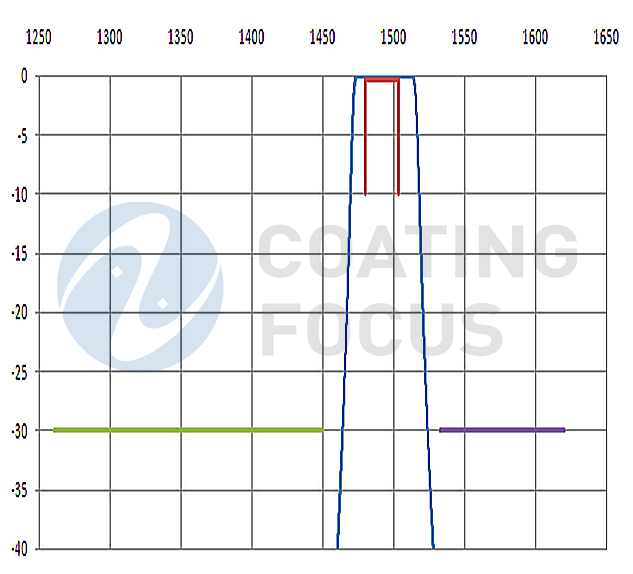

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1600

Angle of Incident

°

0

Pass Band Width

nm

1480~1500

Stop Band Width

nm

1260~1450 & 1530~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30
