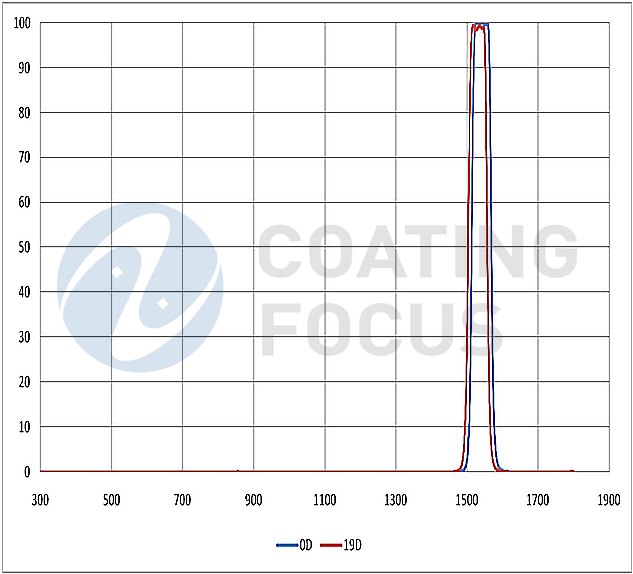

Parameters |
Unit |
Specifications |
Operation Wavelength |
nm |
300~1800 |
Angle of Incident |
° |
0~19 |
Center Wavelength @ -3.0dB |
nm |
1536 |
CWL AOI shift 0~19 degree |
nm |
13.5 |
Pass Band |
nm |
1527~1537 |
Stop Band Width |
nm |
R400-1507 & 1577-1800 |
Passband Transmittance |
% |
>92% |
Stop Band OD |
OD |
>=3 |

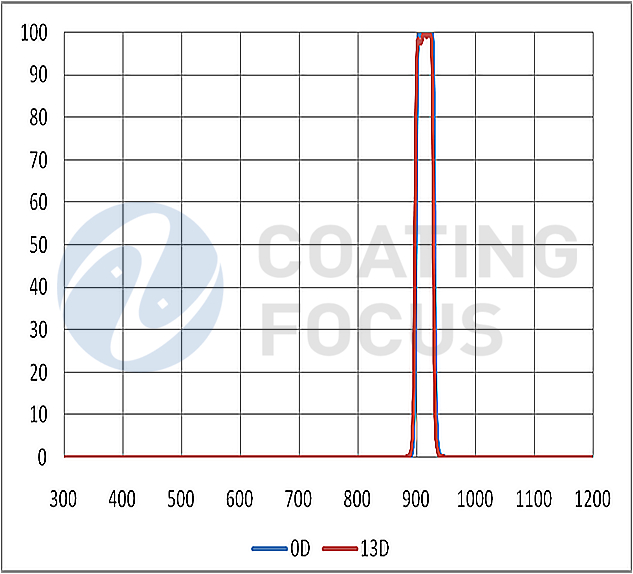

Parameters |
Unit |
Specifications |
Operation Wavelength |
nm |
300~1200 |
Angle of Incident |
° |
0~13 |
Center Wavelength @ 50% |
nm |
915 |
CWL AOI shift 0~13 degree |
nm |
4 |
Pass Band |
nm |
903~927 |
Stop Band Width |
nm |
R300-880 & 950-1200 |
Passband Transmittance |
% |
>92% |
Stop Band OD |
OD |
>=3 |
