COMBO ONU Filter

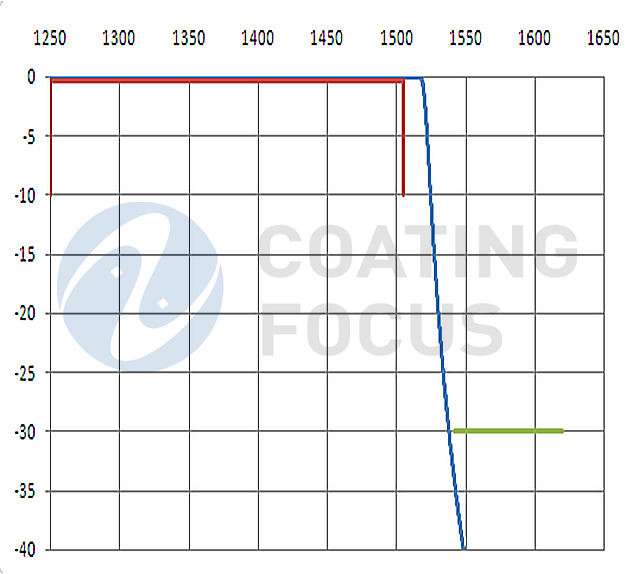

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

45

Pass Band Width

nm

1260~1505

Stop Band Width

nm

1555~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

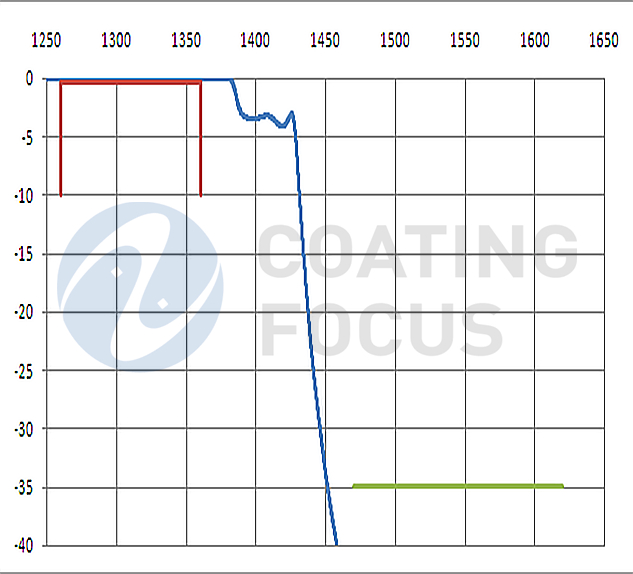

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

45

Pass Band Width

nm

1250~1350

Stop Band Width

nm

1470~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

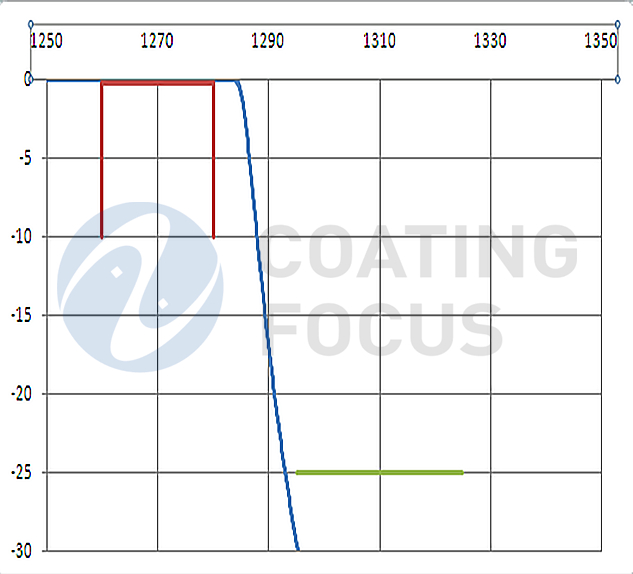

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1350

Angle of Incident

°

45

Pass Band Width

nm

1250~1280

Stop Band Width

nm

1300~1350

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>25

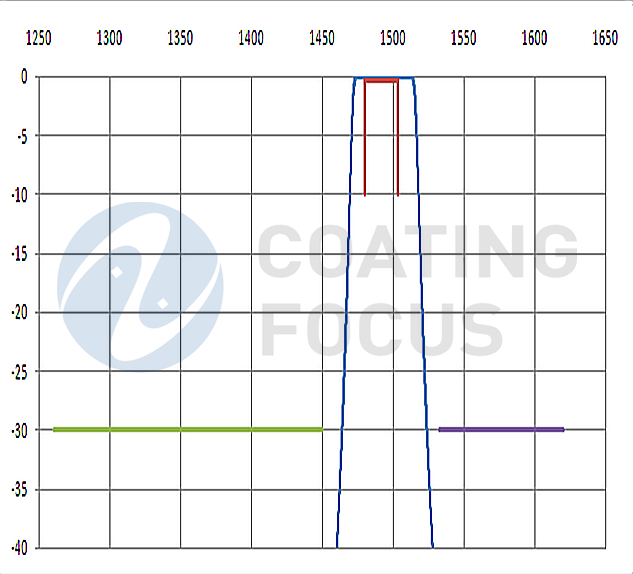

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

0

Pass Band Width

nm

1480~1500

Stop Band Width

nm

1250~1450 & 1530~1620

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30

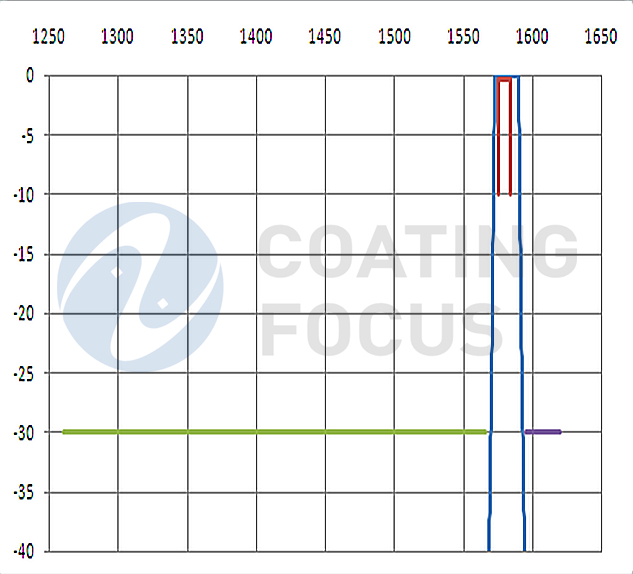

Parameters

Unit

Specifications

Operation Wavelength

nm

1250~1620

Angle of Incident

°

0

Pass Band Width

nm

1575~1580

Stop Band Width

nm

1260~1560 & 1596~1650

Max IL within PassBand

dB

<0.3

Transmission Isolation

dB

>30
