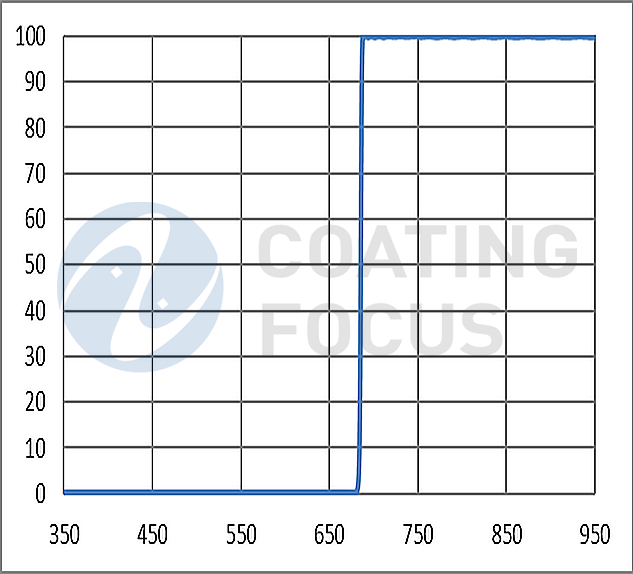

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
680-1000 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~655 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
640-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~615 |

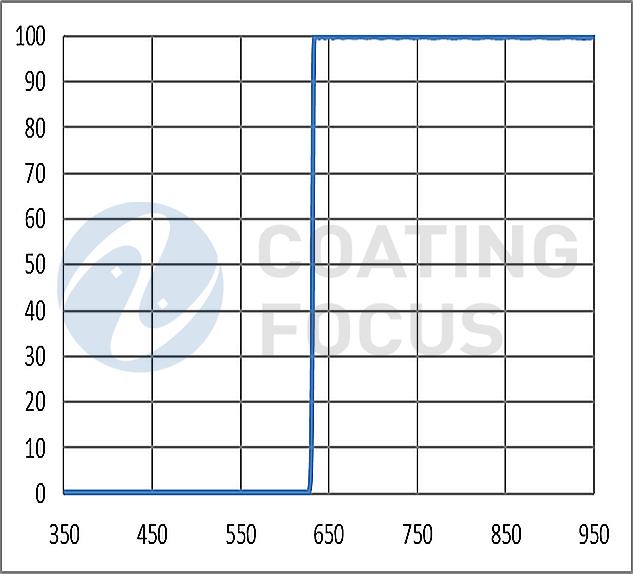

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
615-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~590 |

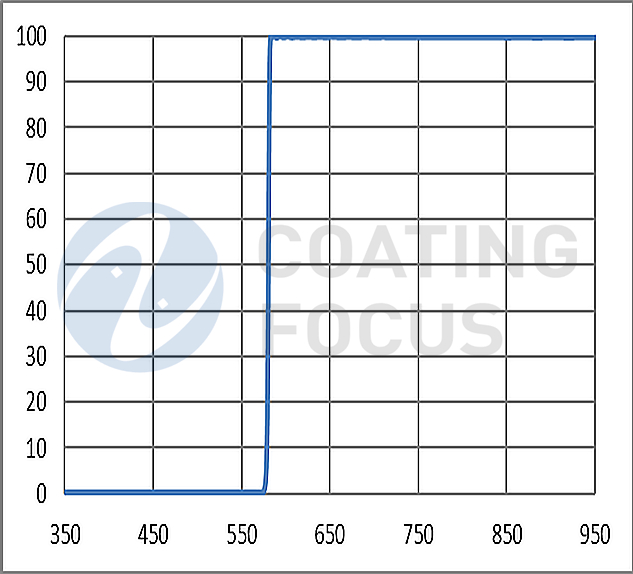

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
575-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~550 |

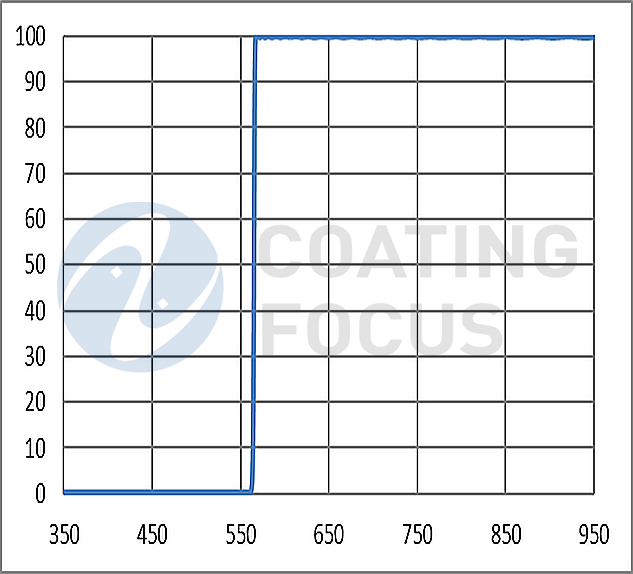

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
538-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~513 |

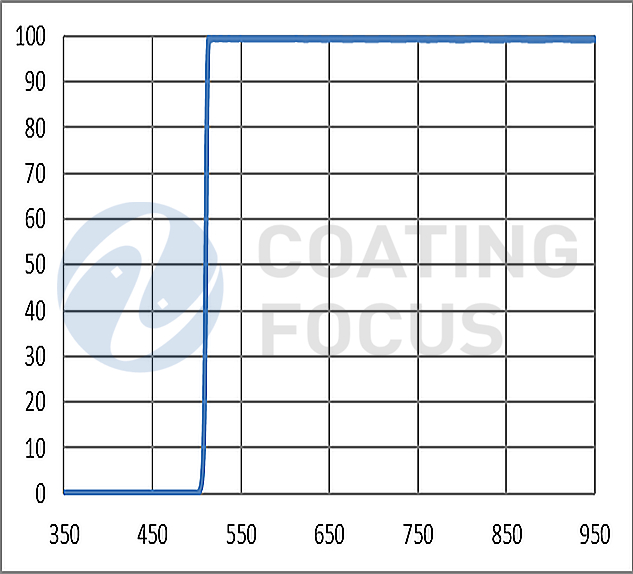

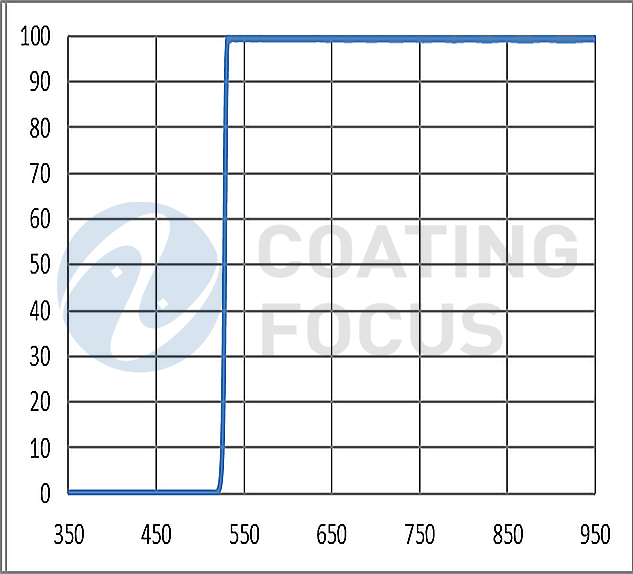

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
520-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~495 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-520 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
545~950 |

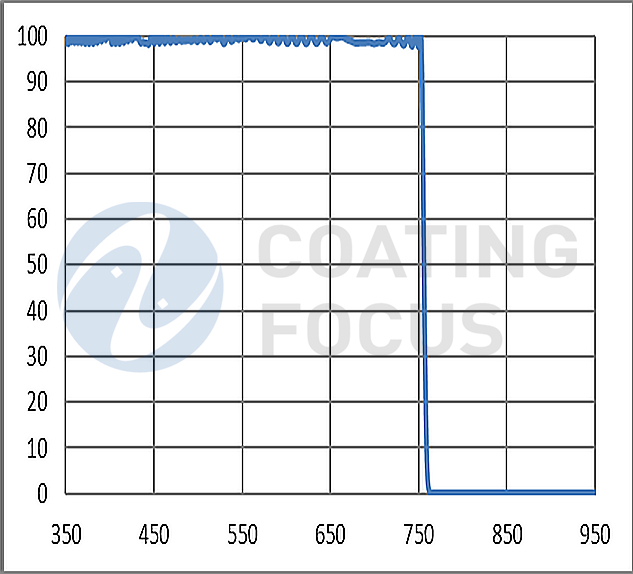

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-745 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
770~950 |

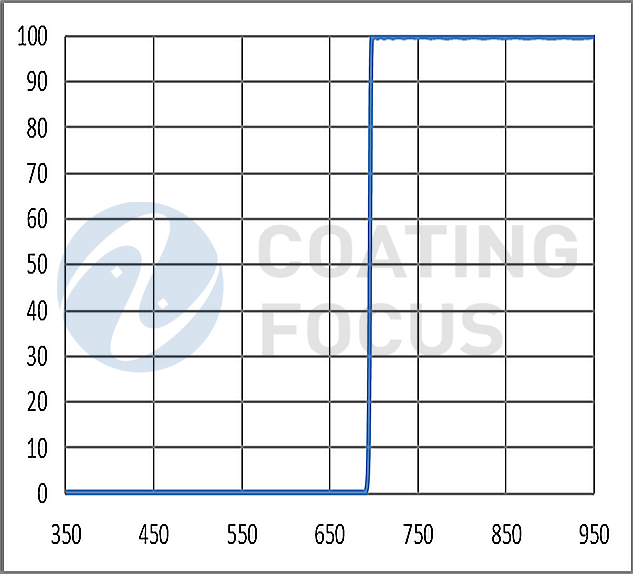

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
705-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~680 |

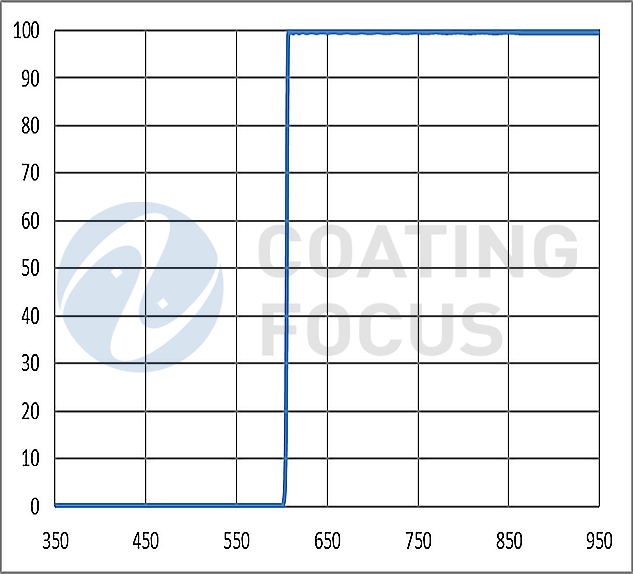

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
605-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~580 |

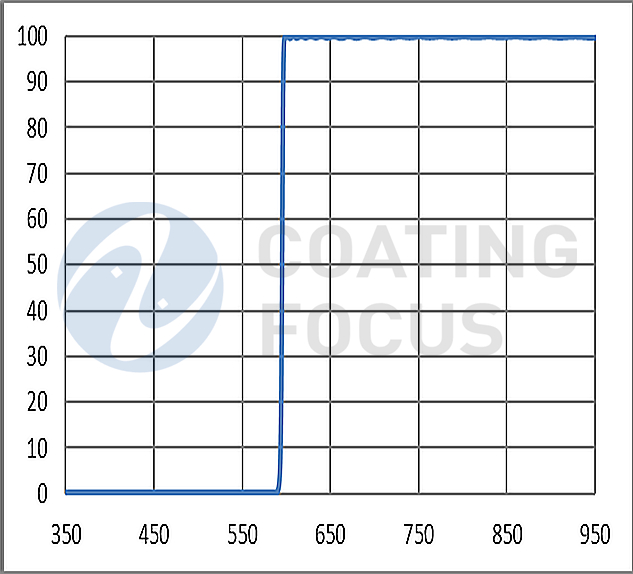

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
590-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~565 |

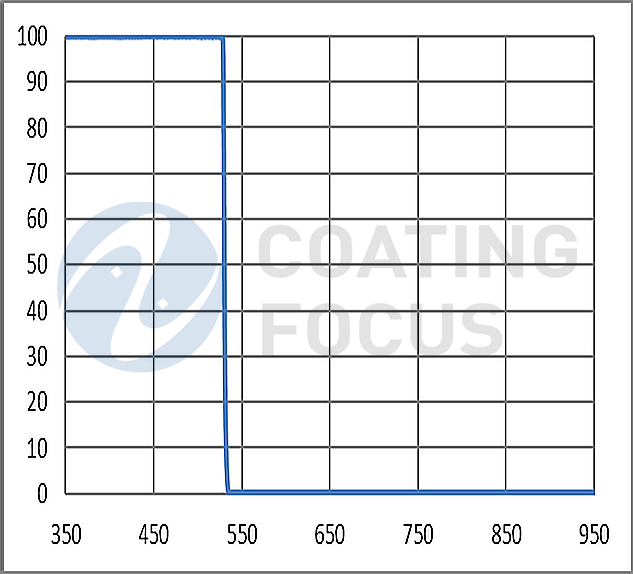

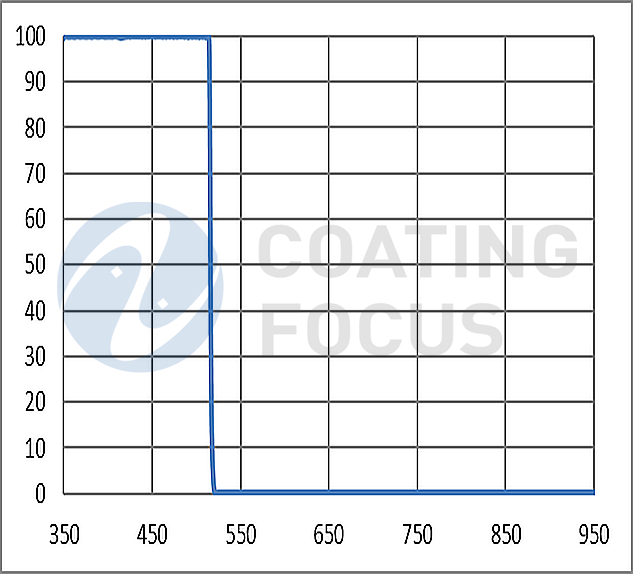

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-505 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
530~950 |

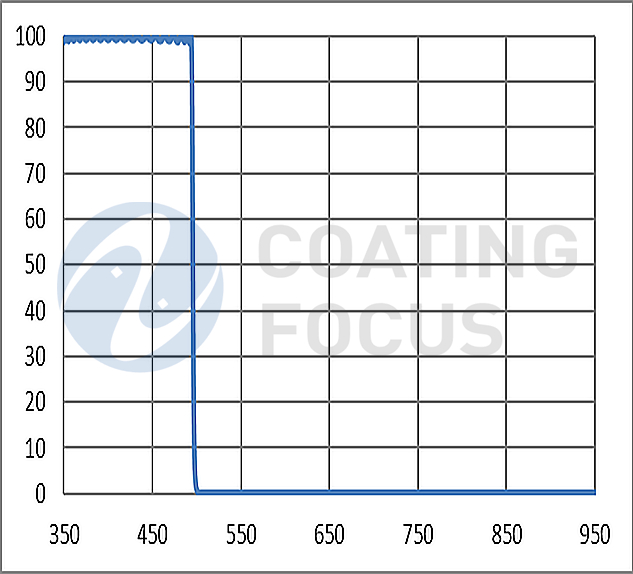

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-485 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
510~950 |

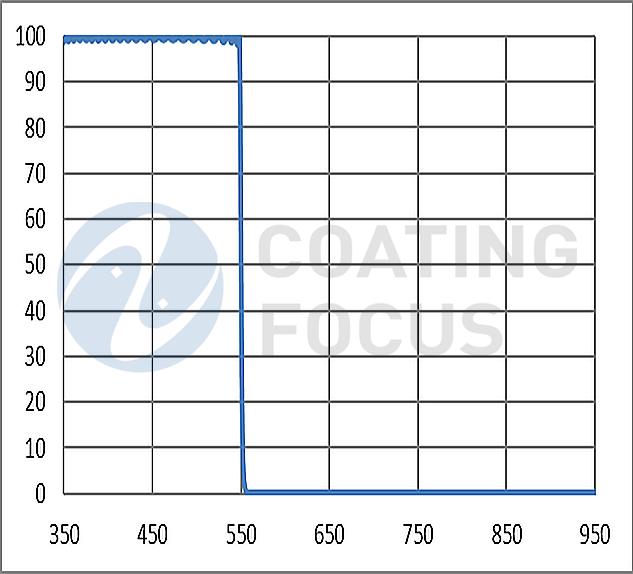

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-540 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
565~950 |

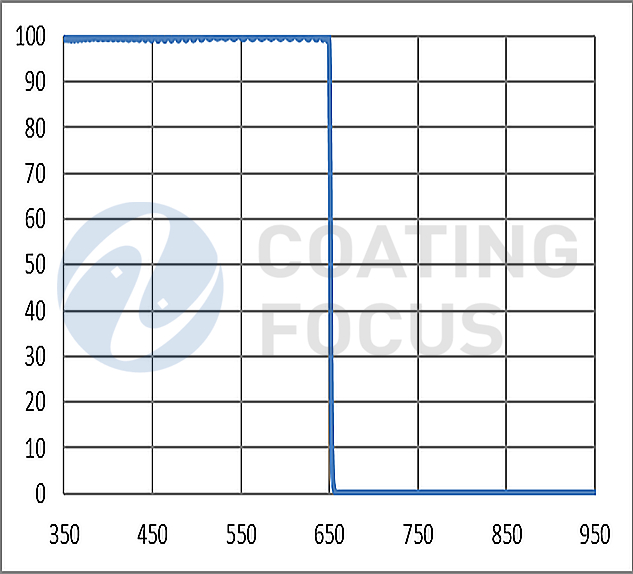

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-640 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
665~950 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
695-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
350~670 |

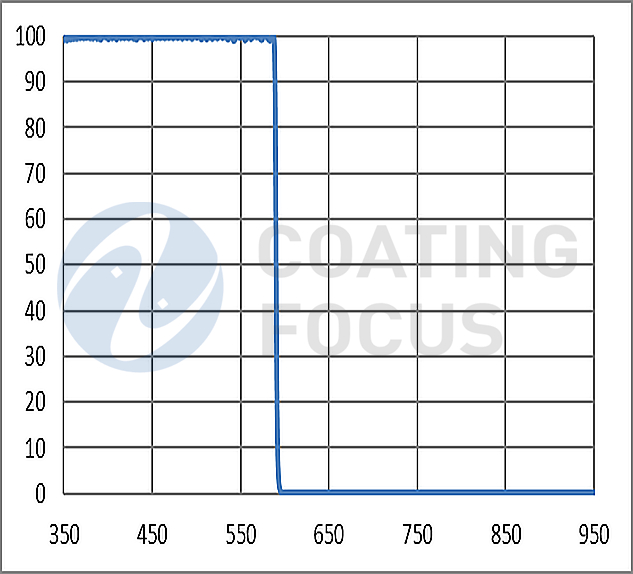

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-580 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
605~950 |

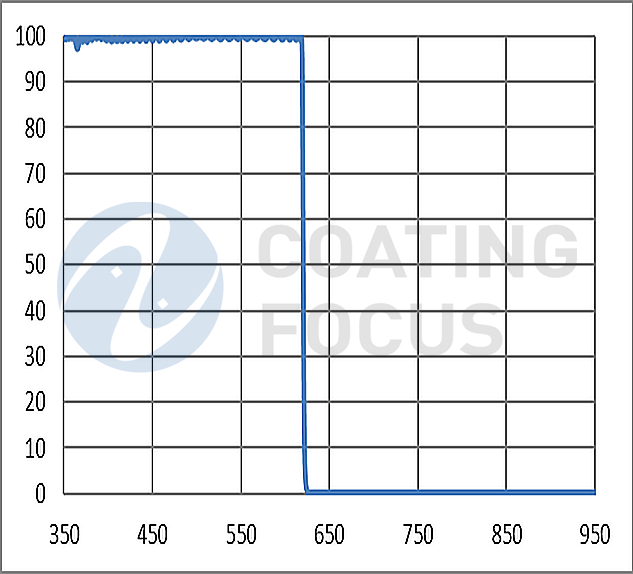

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
350-610 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band OD > 4 |
nm |
635~950 |
