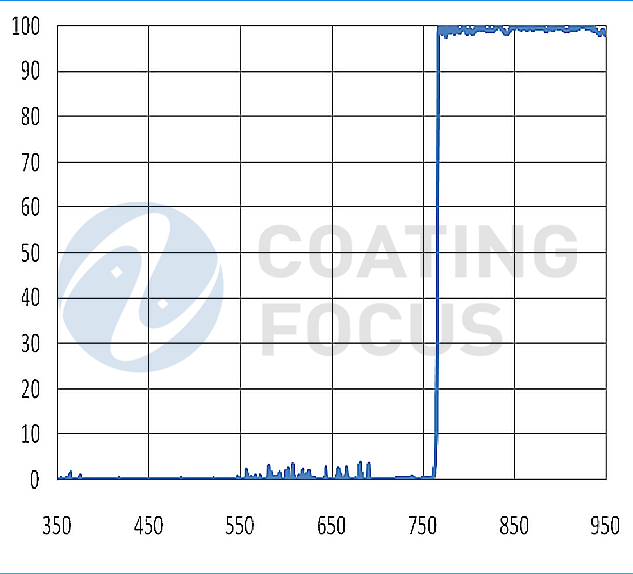

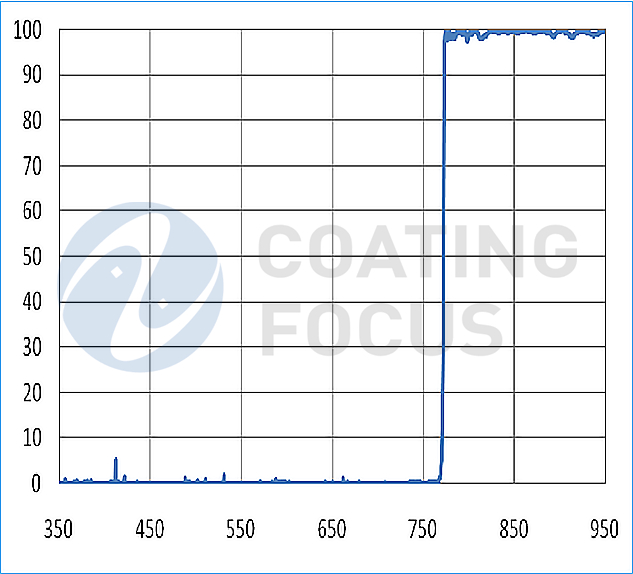

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
774-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~766 |

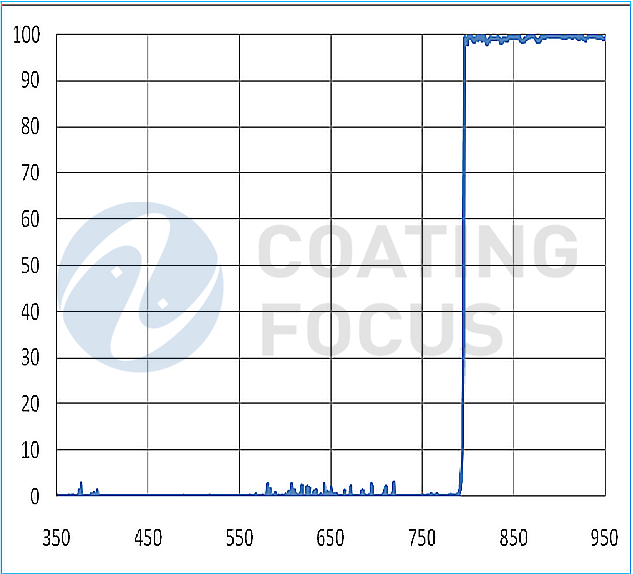

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
797-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~789 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
767-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~663 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
689.5-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~681.5 |

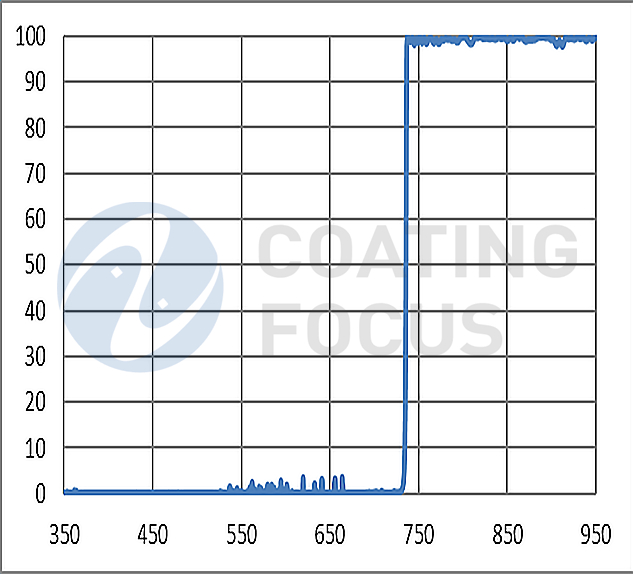

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
730-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~722 |

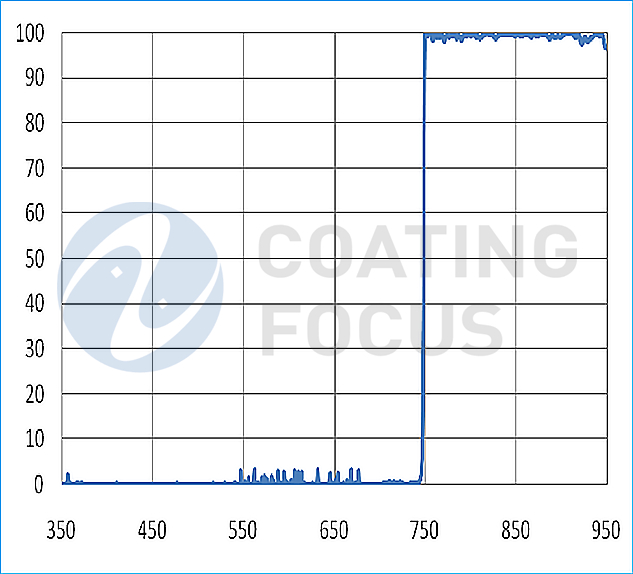

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
750.5-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~742.5 |

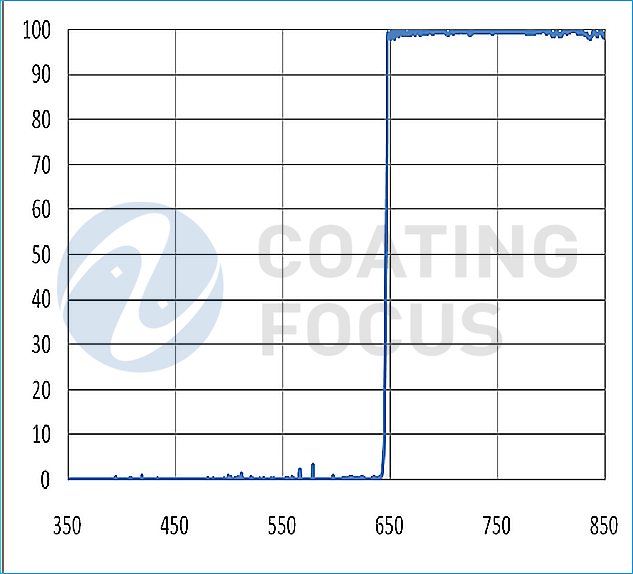

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
648-850 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~640 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
680-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~672 |

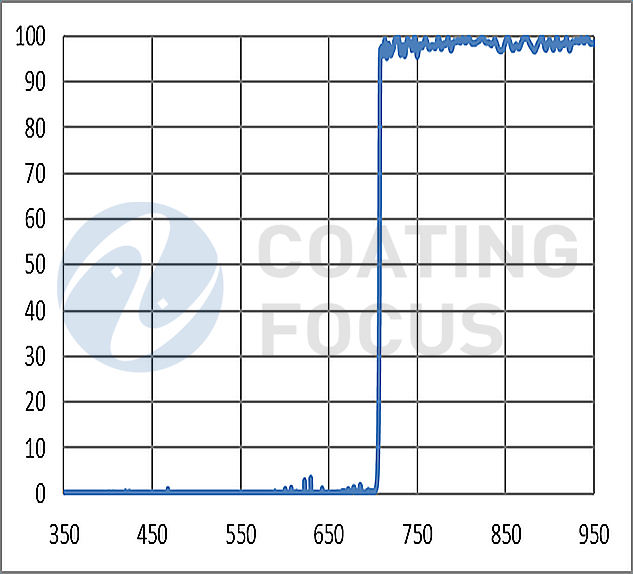

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
708.5-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~700.5 |

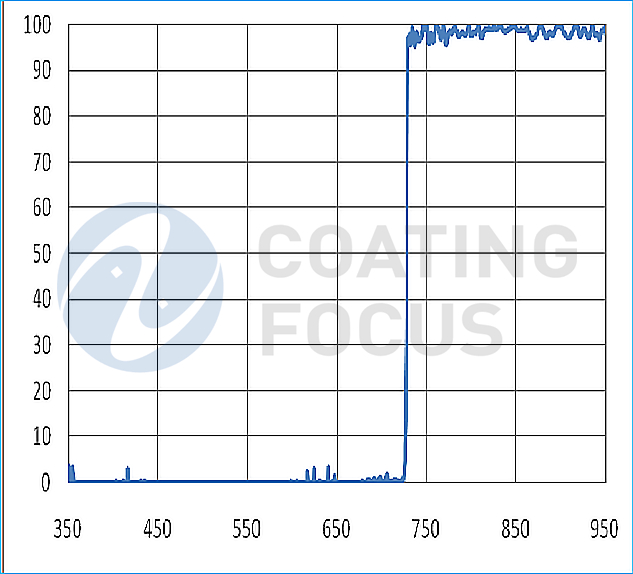

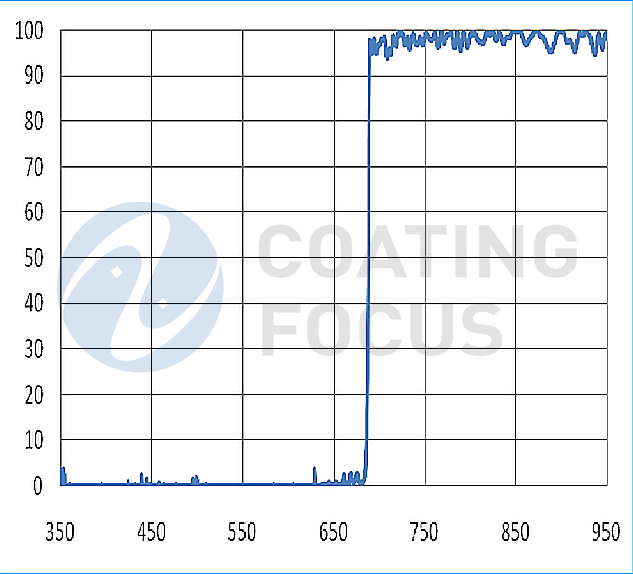

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
737-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~729 |

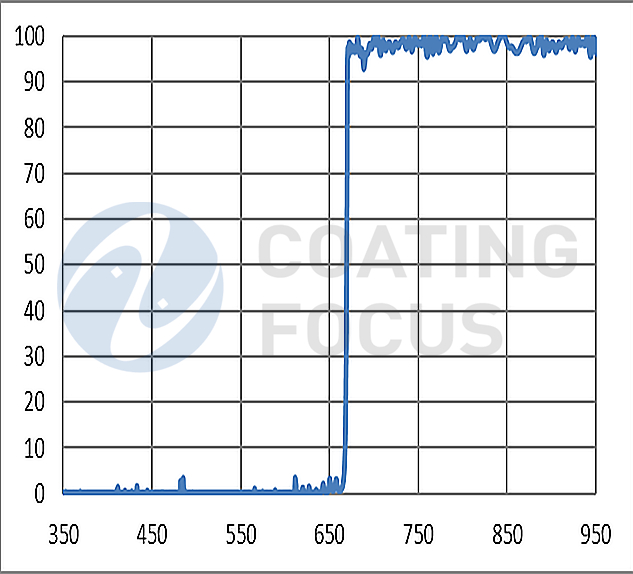

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
671-950 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~663 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
564-800 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <1% |
nm |
350~556 |

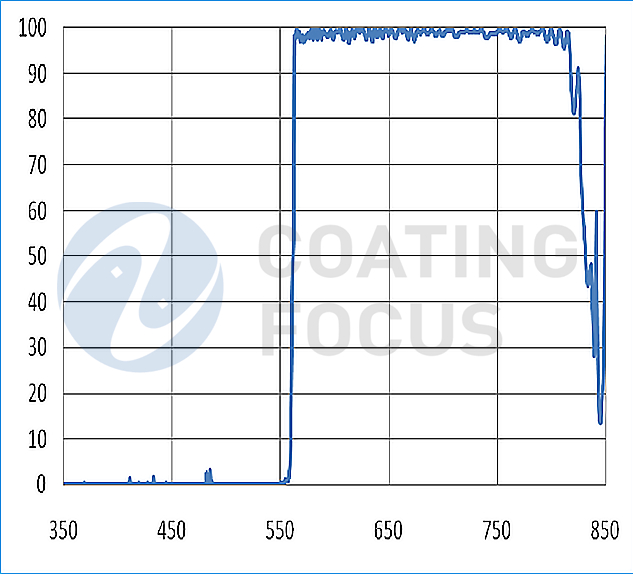

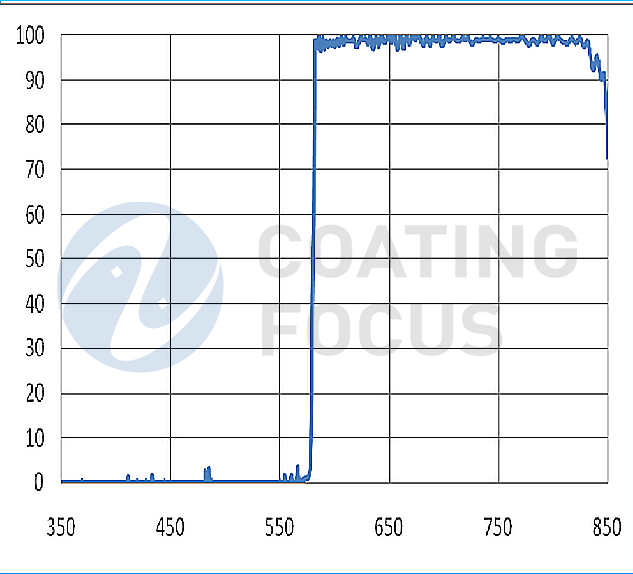

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
45 |
Passband |
nm |
586-800 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band <5% |
nm |
350~578 |

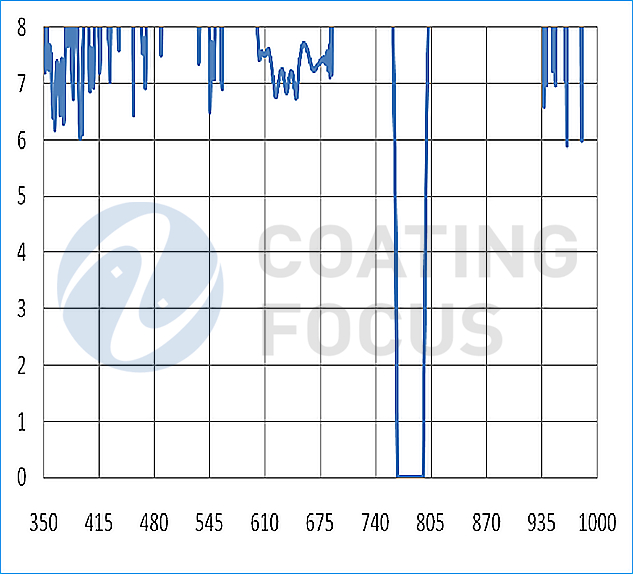

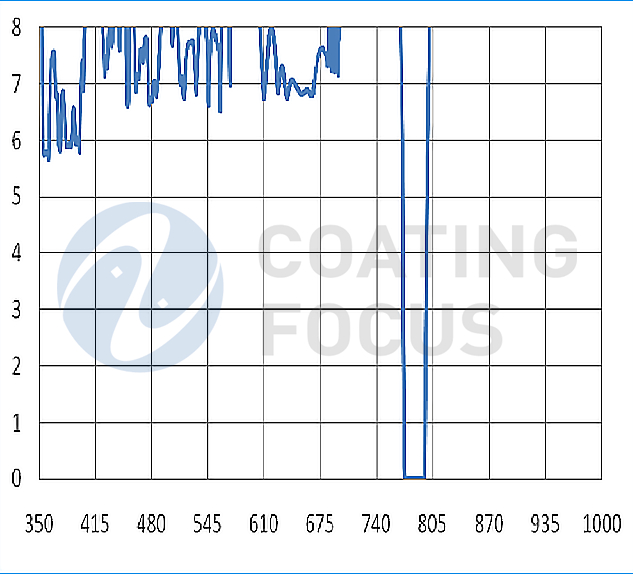

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
773~794 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band1 OD > 5 |
nm |
350~400 |
Block Band2 OD > 6 |
nm |
400~768 & 802~1000 |

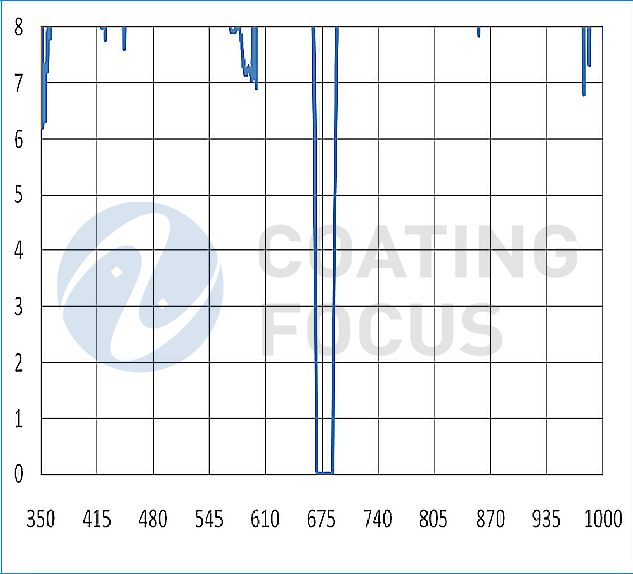

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
670~686 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~664 & 692~1000 |

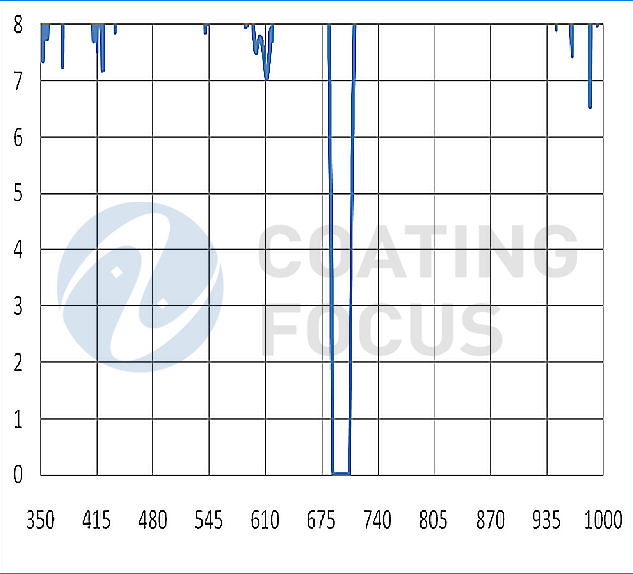

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
688.5~705.5 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~682.5 & 711.5~1000 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
708~726 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~702 & 732~1000 |

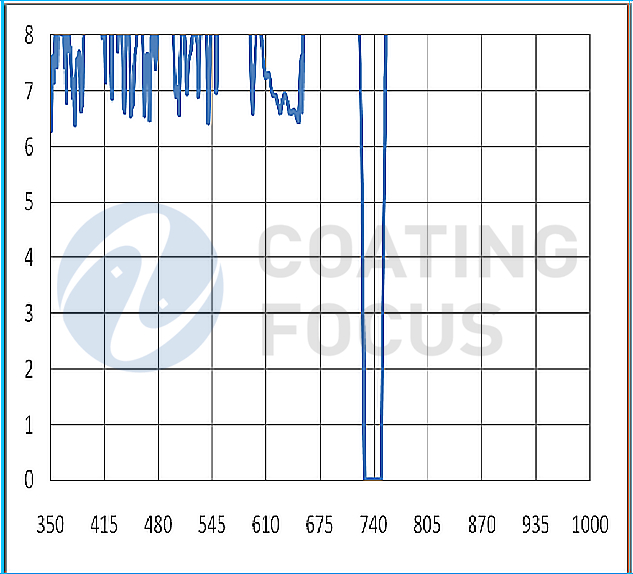

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
729~747 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~723 & 753~1000 |

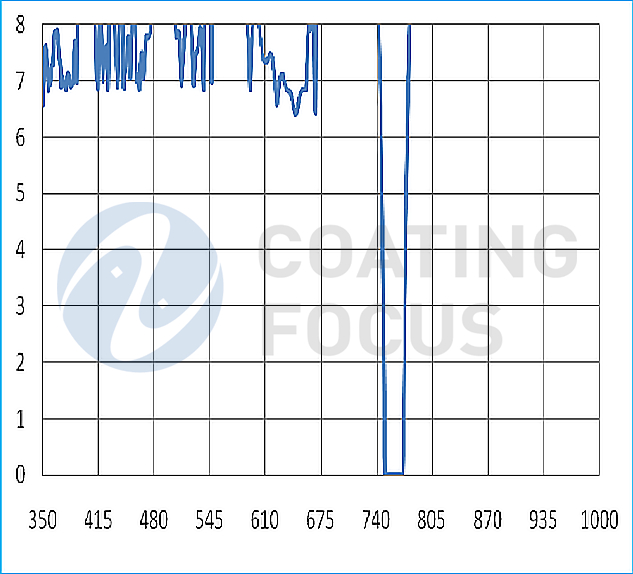

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
749.5~770.5 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~743.5 & 776.5~1000 |

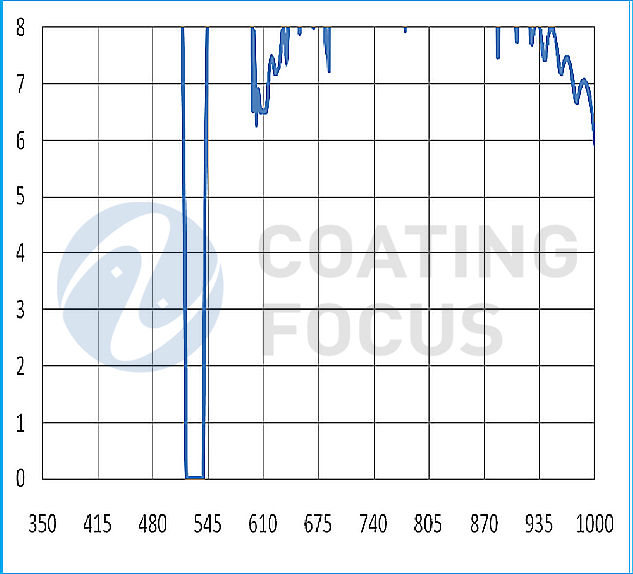

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
520~538 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~513 & 545~1000 |

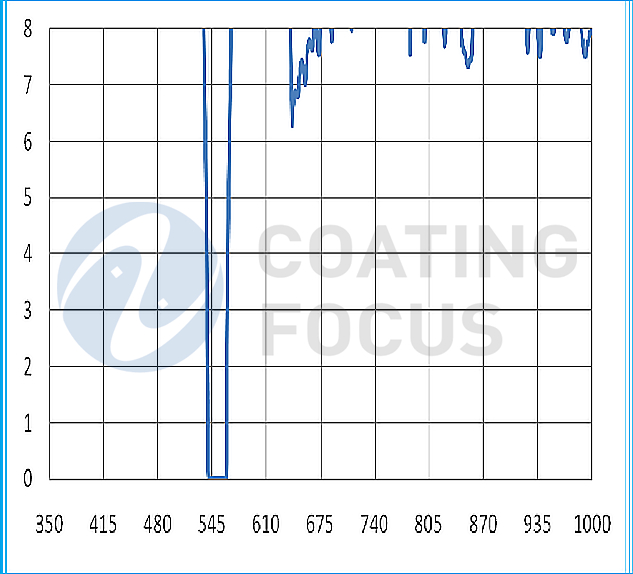

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
541~561 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~535 & 567~1000 |

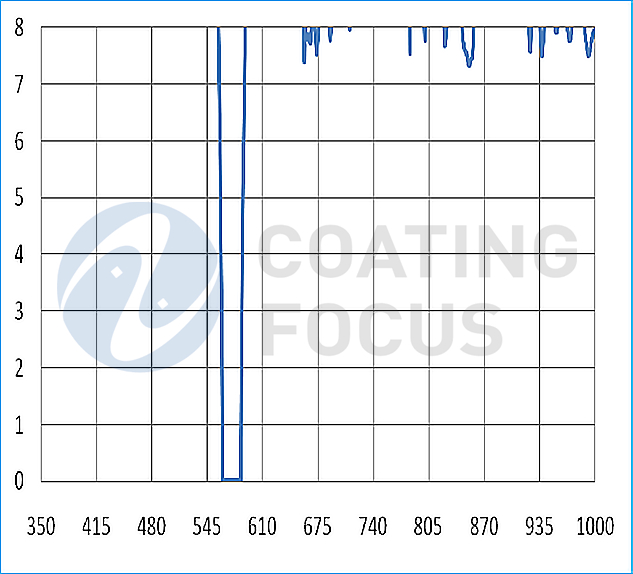

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
563~583 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~557 & 589~1000 |

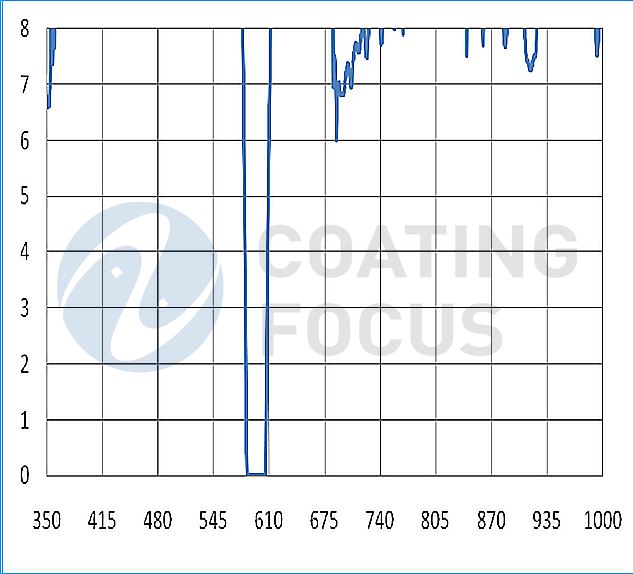

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
585~605 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~579 & 611~1000 |

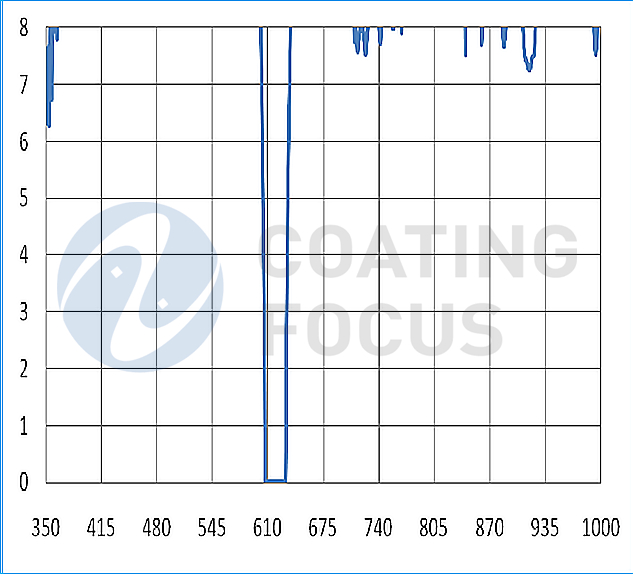

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
607~630 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~601 & 636~1000 |

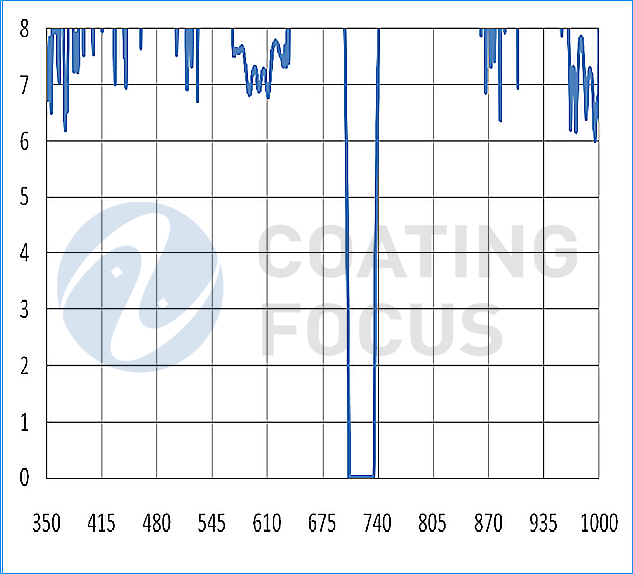

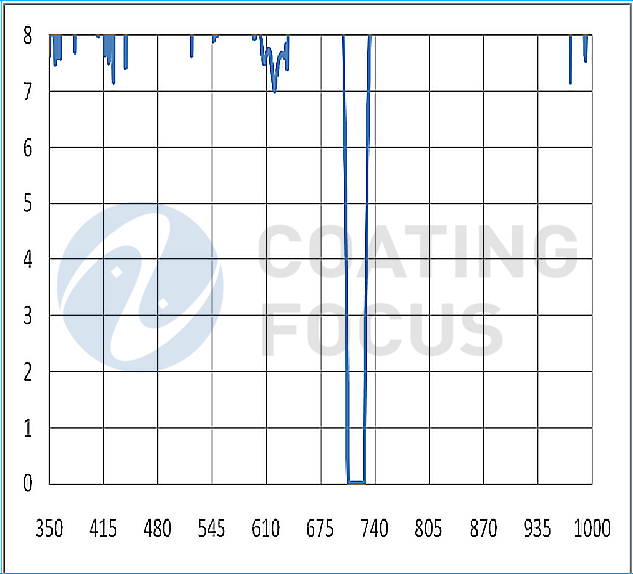

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
707~734 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~701 & 740~1000 |

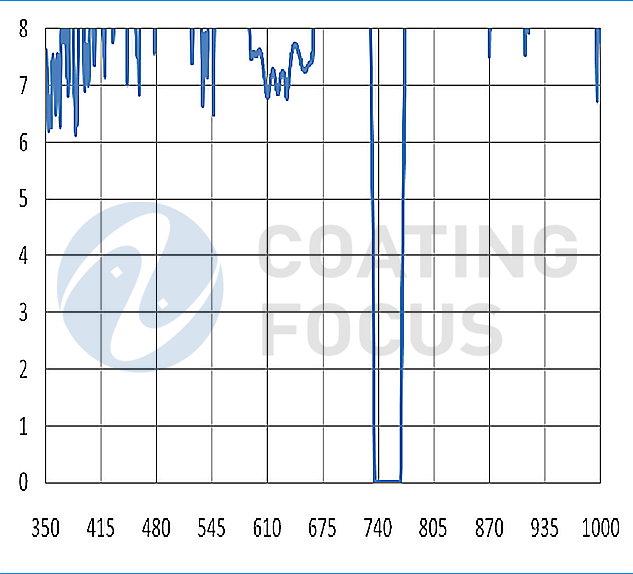

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
736~764 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~730 & 770~1000 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
766~794 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~760 & 800~1000 |

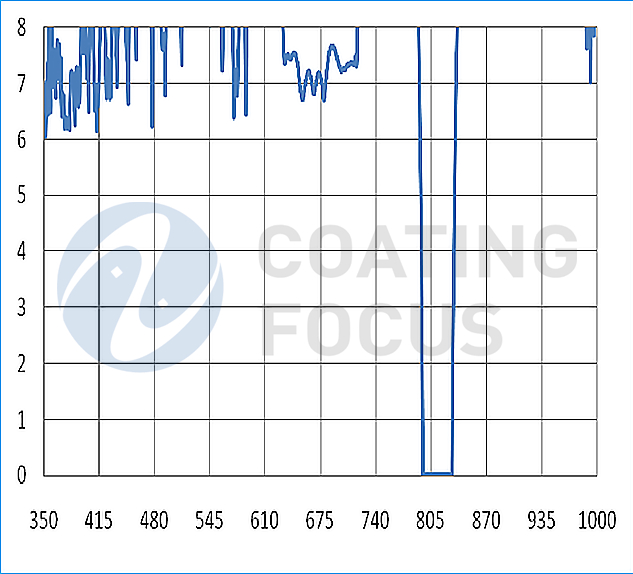

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
796~828 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~790 & 834~1000 |
