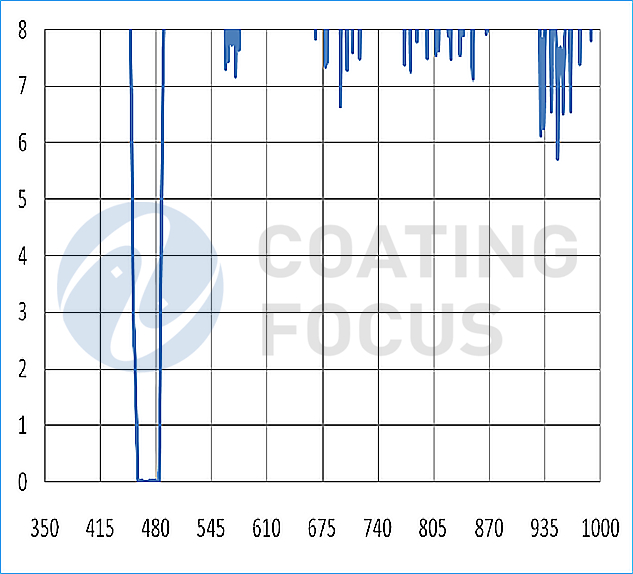

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
457~483 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~449 & 491~1000 |

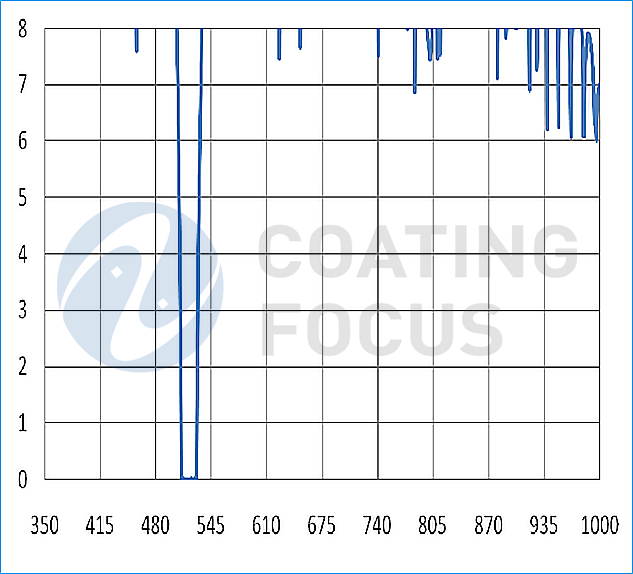

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
512~528 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~504 & 536~1000 |

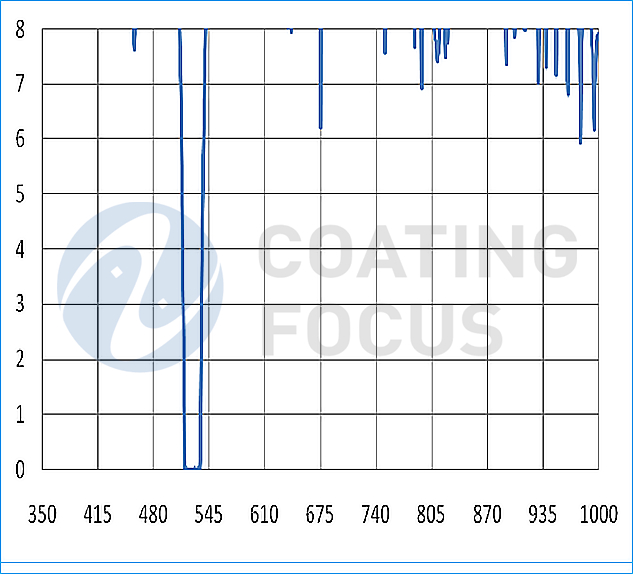

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
517~533 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~509 & 541~1000 |

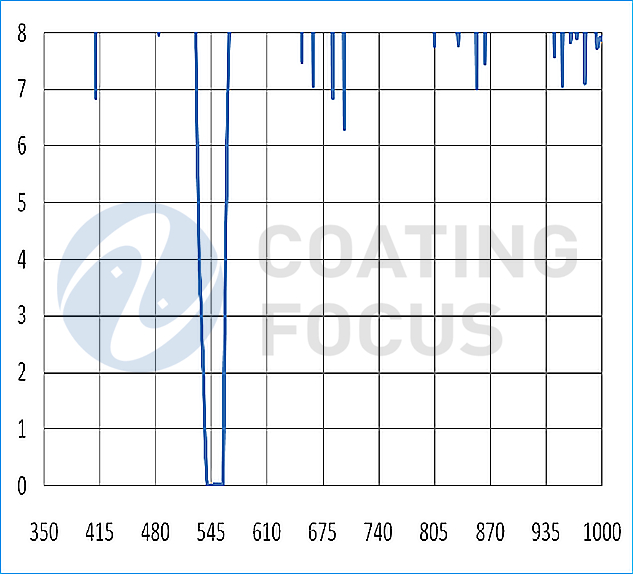

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
534.5~555.5 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~526.5 & 563.5~1000 |
Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
557~573 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~549 & 581~1000 |

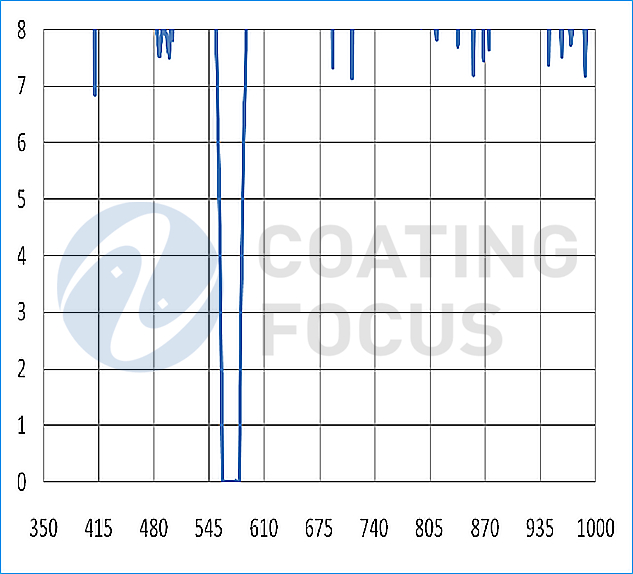

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
562~578 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~554 & 586~1000 |

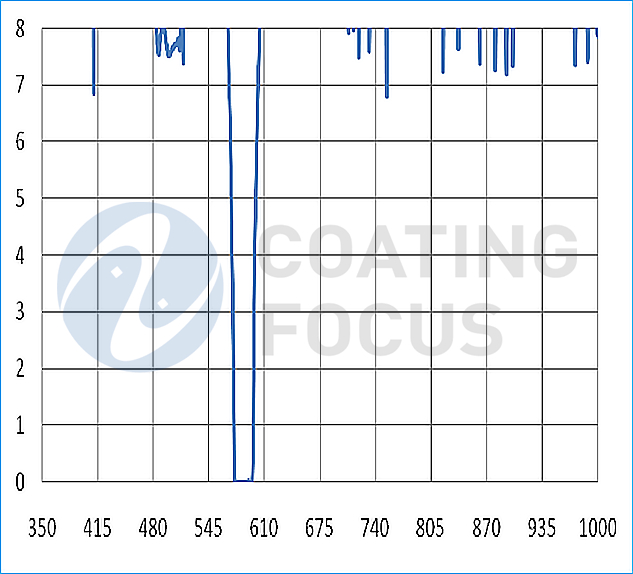

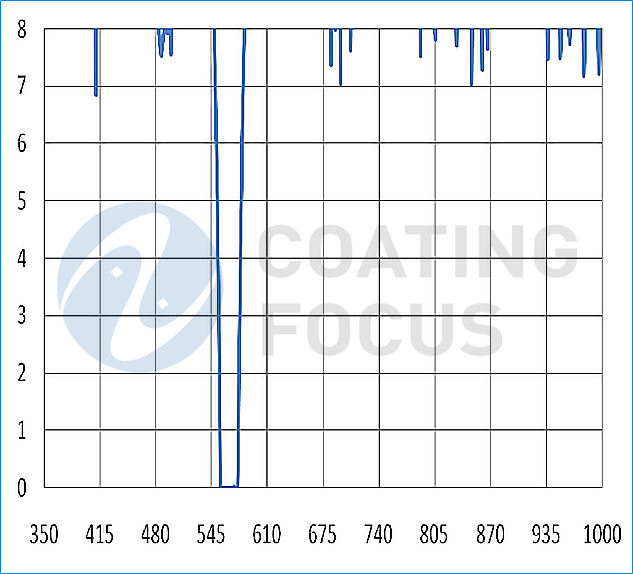

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
577~593 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~569 & 601~1000 |

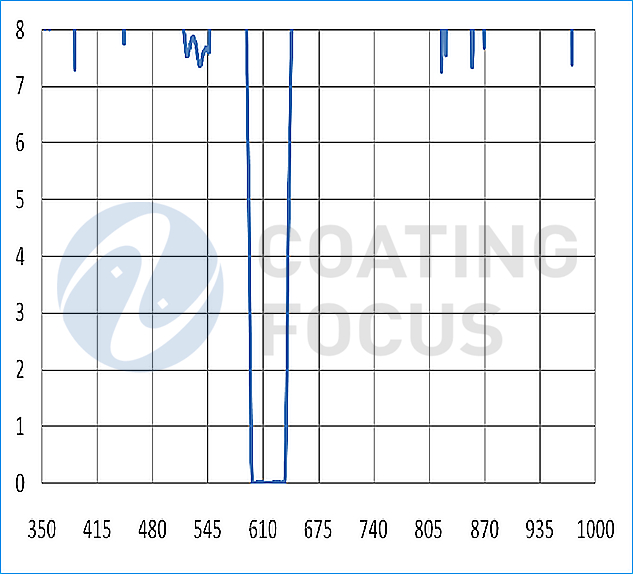

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
597~633 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~589 & 641~1000 |

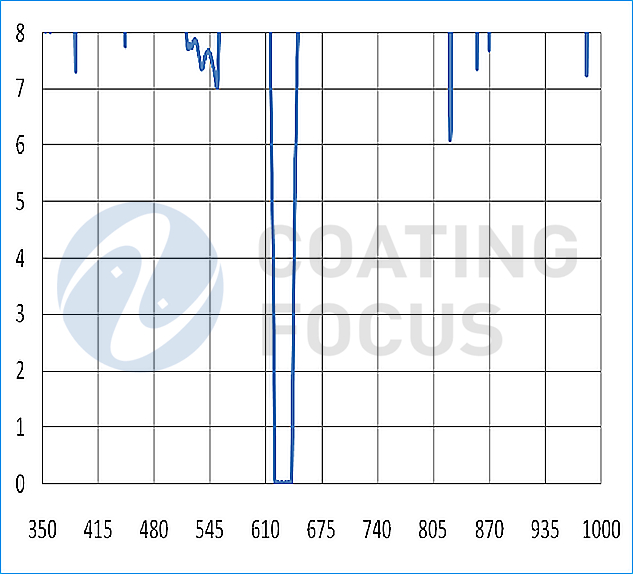

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
622~638 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~614 & 646~1000 |

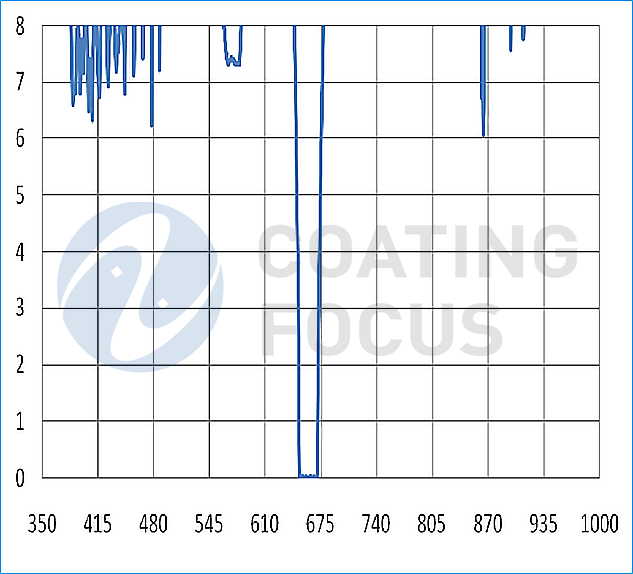

Parameters |
Unit |
Specifications |
Angle of Incident |
° |
0 |
Passband |
nm |
657~673 |
Passband Average Transmission |
% |
>= 90% |
Passband Absolute Transmission |
% |
>= 92% |
Block Band2 OD > 6 |
nm |
350~649 & 681~1000 |
