AI 800G Filter

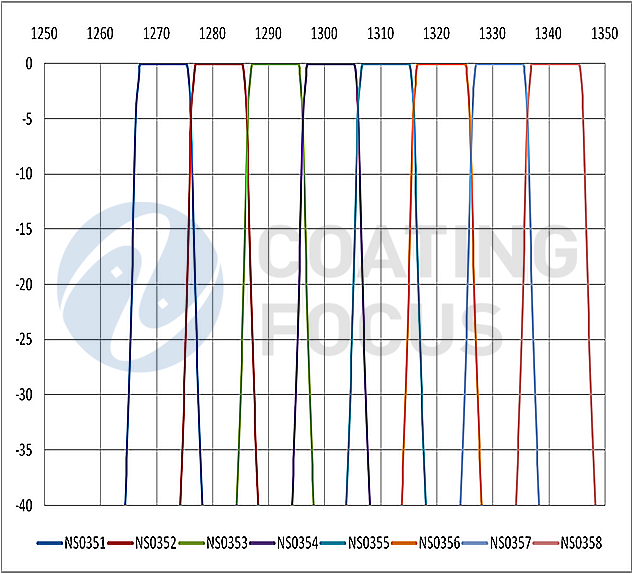

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1350

Incidence medium

/

Epoxy(n=1.491@1300)

Angle of Incident

°

8 or 13.5

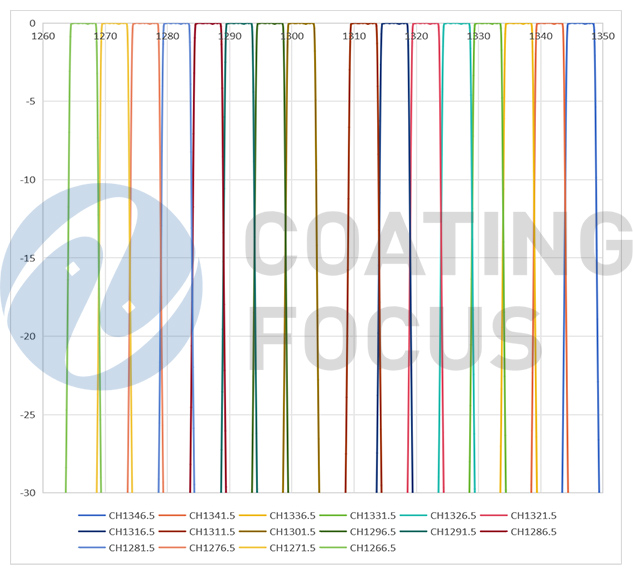

Center Wavelength

nm

1271.5,1281.5~1331.5,1341.5

Pass Band Width @ -0.3dB

nm

>=±3

Stop Band Width

nm

<=±7

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=30

Transmission Isolation within Not-Adjacent Channel

dB

>=45

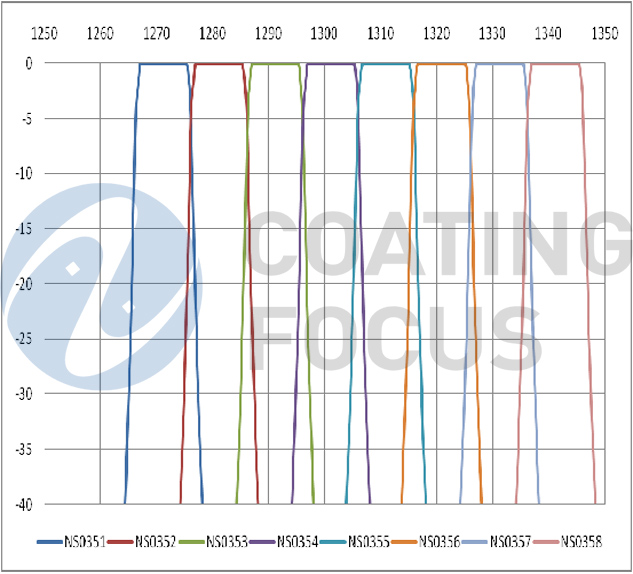

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1350

Incidence medium

/

Epoxy(n=1.491@1300)

Angle of Incident

°

8 or 13.5

Center Wavelength

nm

1271.5,1281.5~1331.5,1341.5

Pass Band Width @ -0.3dB

nm

>=±3

Stop Band Width

nm

<=±7

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.2

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=30

Transmission Isolation within Not-Adjacent Channel

dB

>=45

Parameters

Unit

Specifications

Operation Wavelength

nm

1260~1350

Incidence medium

/

Epoxy(n=1.491@1300)

Angle of Incident

°

8

Center Wavelength

nm

1266.5,1271.5~1341.5,1346.5

Pass Band Width @ -0.3dB

nm

>=±1.5

Stop Band Width

nm

<=±3.5

Max IL within PassBand

dB

<=0.3

Max IL within StopBand

dB

<=0.2

Ripple within PassBand

dB

<=0.25

Ripple within StopBand

dB

<=0.15

Polarization Dependent Loss within PassBand

dB

<=0.1

Transmission Isolation within Adjacent Channel

dB

>=15 or 30 (Tx or Rx)

Transmission Isolation within Not-Adjacent Channel

dB

>=35
